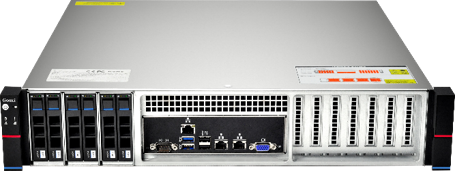

Jinpin KU 2206-SE Edge Computing Server
The KU2206-SE is an edge computing server developed based on INTEL processors and the LINUX system, featuring stable and reliable performance. The product supports NVIDIA GPU accelerators and platinum-level redundant power supplies, with high performance, adaptability, and reliability.
It is suitable for edge data centers with high processing power requirements, such as video processing, smart inspections, facial recognition, and smart communities.
Supports both 1st and 2nd generation Intel® Xeon® Scalable processors;
16 DIMM DDR4 memory slots, 1 onboard M.2 interface, 2 Gigabit Ethernet ports, and 1 RJ45 management port;
Supports two full-height, full-length double-width GPU cards and one half-height, half-length single-width standard PCIe card;
Based on the OTII standard design, meeting the business needs of operators for network cloudification and new MEC (Multi-Access Edge Computing) emphasizing core network and access network.
|
Components |
Description |
|
Specification |
89 x 490 x 437mm (H x W x D) |
|
Processor |
2 x Intel® Xeon® Skylake/Cascade Lake processors; up to 205W TDP |
|
Memory |
16 DDR4 memory slots, supports DDR4 LRDIMM/RDIMM 2400/2666/2933MHz |
|
Hard drive |
Supports 4 hot-swappable 2.5-inch SAS/SATA HDDs |
|
Chipset |
Intel® C621 |
|
Display |
Aspeed AST2400 |
|
Management |
IPMI2.0 |
|
Other interfaces |
1 x DB-9 COM 、2 x USB3.0、2 x USB2.0 |
|
PCIe Expansion |
Supports 2 full-height, full-length double-width PCIe expansion slots 1 half-height, half-length single-width PCIe expansion slot 1 M.2 slot. |
|
Fan |
Standard with 3 hot-swappable 8038 fans |
|
Power supply |
550W 1+1 Platinum-level power supply |
|
Operating System |
Microsoft Windows Server、Red Hat Enterprise Linux； SUSE Linux Enterprise Server、CentOS、Ubuntu； |
|
Working temperature |
0℃～ 40℃ |
|
Working humidity |
8%-90％relative humidity. |
