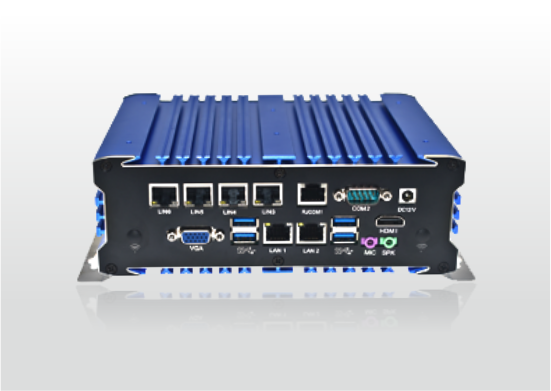

Jinpin E300 Edge Computing Gateway
The Jinpin E300 is a high-performance industrial computer with wide temperature and voltage range, internal wireless connectivity, and stable and reliable performance. It uses a low-power processor and fully supports Intel i3/i5/i7 processors, with a rich set of I/O interfaces. It is widely used in power, IoT, industrial production lines, machinery and equipment, testing equipment, commercial cash registers, and other scenarios.
• Intel® Core i7-8565U Processor
• Support for I3/i5/i7 series CPUs with various configuration options available
• Supports 2 COM ports (RS232/485 switchable)
• 6 Intel® i211AT Gigabit Ethernet ports, supporting EtherCAT; all-aluminum alloy material for high-end and atmospheric appearance
• Fully-sealed wireless cable design to prevent dust, shock, and interference
|
Processor |
Intel® Core™ i7-8565U Processor |
|
CPU Architecture |
Intel SkyLake/kaby Lake |
|
Memory |
1 DDR4 SO-DIMM slot, up to 16GB |
|
Storage |
1 MSATA, 1 SATA 2.5" hard drive |
|
Display Chip |
CPU integrated Intel HD Graphics 620/610 |
|
Network: |
6 Intel® i211 Gigabit Ethernet ports |
|
GPIO |
8 GPIOs (4 input, 4 output) |
|
WIFI |
Supported (optional) |
|
Expansion Slot |
miniPCIE x1, supports 3G/4G module, WIFI Bluetooth module |
|
I/O Interface |
2 USB2.0, 4 USB3.0, 2 COM, VGA, HDMI |
|
Power Supply |
12V DC input |
|
Operating System |
Windows7/8/10/server 2019/Linux |
|
Operating Temperature |
-10℃～+50℃ |
|
Operating Humidity |
0%-95％ |
|
Product Size |
192mmx 146mmx 67mm（WxDxH） |
|
Weight |
2.05KG |
