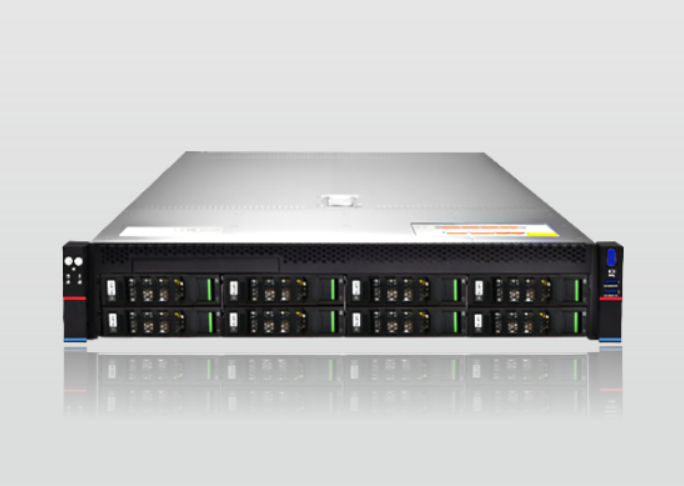

Jinpin KG 2202-V2 AI Server
The Jinpin KG2202-V2 is an inference computing server based on the Intel® Xeon® Scalable Processor. It features 2U space that can support up to 4 NVIDIA GPU inference cards (passive cooling), two first or second generation processors, 3TB DDR4 ECC RDIMM memory, and supports both rack and desktop installations. It also features an independent air duct design that ensures effective heat dissipation and reduces system noise.
This server is suitable for high-performance computing applications such as deep learning training, inference, video analysis, big data, and virtual computing.
Advanced Architecture
Supports up to 4 PCIe form factor external cards in 2U space, supporting NVIDIA Tesla professional cards;
Supports NVIDIA NVLINK interconnect technology, which can improve memory and performance expansion;
Supports the latest 100Gb network card to improve data transmission efficiency.
Outstanding Performance
Two Intel® Xeon® Scalable processors (first and second generation);
24 DDR4 ECC RDIMM memory slots, supporting up to 3TB of memory;
The motherboard has two native M.2 interfaces, enabling high-performance computing.
Flexible Configuration
Supports 8 front-facing 3.5/2.5" + 4 rear-facing 3.5/2.5" hard drives, with RAID data protection;
Supports 1+1 redundant CRPS power supply or tower power supply, effectively reducing cost;
Flexible adaptation to various brands of new generation AI acceleration cards and intelligent network cards.
Ready to Use
Pre-installed with Ubuntu operating system and deep learning SDK;
Deep learning frameworks include TensorFlow, PyTorch, etc.;
Delivered in container form, shortening the software deployment cycle that would otherwise take days and providing a ready-to-use solution to improve work efficiency.
|
Component |
Description |
|
Specifications |
2U Rackmount Server |
|
Dimensions |
748x433.4x87.6mm(Depth x Width x Height) |
|
Processor |
2 x Intel Xeon Scalable Processors (Skylake & Cascade Lake) up to TDP 205W |
|
Memory |
4 x 2666/2933MHz ECC RDIMMs/LRDIMMs/AEP DIMM Single 8GB, 16GB, 32GB, 64GB, 128GB, up to 9TB |
|
Storage |
2 x M.2 NVMe SSD slots 8 x 3.5"/2.5" SATA/SAS hot-swappable drive bays (front) 4 x 3.5" and 4 x 2.5" hot-swappable drive bays (rear) or 8 x 2.5" hot-swappable drive bays (rear) |
|
Storage Controller |
Integrated 6Gb/s SATA (3 x 8643 mini SAS) |
|
Network Interface |
2 x RJ45 1000/100/10Mbps adaptive Ethernet interfaces |
|
Management |
Onboard 1 x independent 1000Mbps Ethernet interface Supports IPMI, SOL, KVM Over IP, Virtual Media, and other management features |
|
PCIe Expansion Slots |
10 x PCIe 3.0 slots, 1 x OCP 3.0 slot |
|
I/O Ports |
Front: VGA, 2 x USB 3.0 Rear: VGA, 2 x USB 3.0, 1 x management network port, 2 x RJ45 data network ports, 1 x DB-9 COM port |
|
Power Supply |
550W redundant power supply, optional: 800/1300/1600W |
|
Operating System |
Windows，ubuntu ，Centos，SUSE、Vmware |
|
Working Environment |
Temperature: Operating: 0℃ to 40℃; Non-operating: -40℃ to 60℃ Humidity: Operating: 10% to 90%; Non-operating: 5% to 95% (non-condensing) |
