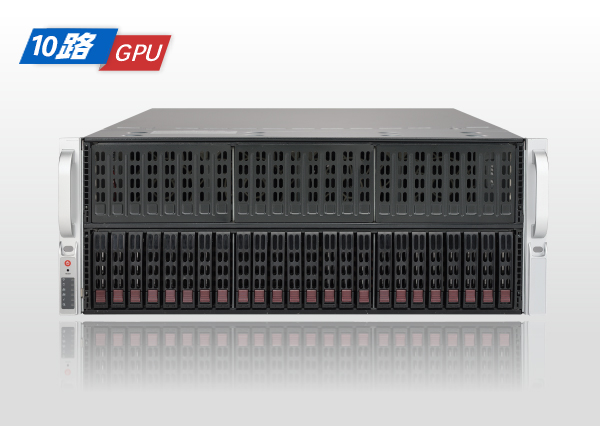

Jinpin KG4208-V2 AI server
The Jinpin KG4208-V2 AI server is a deep learning server based on the second-generation Intel® Xeon® Scalable processors. It supports up to 10 NVIDIA GPU computing cards (actively cooled) and features dual Intel® Scalable processors, 6TB DDR4 ECC RDIMM/LRDIMM memory, and a rack-mountable design with independent airflow for improved cooling performance and reduced system noise. It is ideal for applications such as artificial intelligence, deep learning training, mathematical modeling, and big data analysis.
Leading Architecture
Independent airflow design ensures stable GPU operation
Supports NVIDIA NVLINK interconnect technology for improved memory and performance scalability
Supports new 100Gb network card for improved data transmission efficiency
Superior Performance
Dual second-generation Intel® Xeon® Scalable processors with TDP up to 205W
16 DDR4 ECC RDIMM/LRDIMM memory slots, supporting up to 6TB of memory
Intel Optane Data Center Persistent Memory enhances computing efficiency
Flexible Configuration
Front-mounted 24 hot-swappable 2.5" hard drives, with support for two hot-swappable 2.5" NVMe hard drives and RAID data protection
2+2 redundant power supplies to prevent data loss in case of power failure
Optional rear-mounted 4 hot-swappable fans for improved GPU cooling
Ready-to-Use
Pre-installed Ubuntu operating system and deep learning SDK
Deep learning frameworks including TensorFlow and PyTorch
Container-based delivery for shortened software deployment cycle, enabling users to start working immediately
|
Component |
Description |
|
Specifications |
4U rackmount |
|
Dimensions |
773x437x178mm（(depth x width x height) |
|
Processor |
2 x 2nd Gen Intel® Xeon® Scalable processors TDP 205W |
|
Memory |
16 x DDR4 DIMM slots supporting DDR4 ECC RDIMM/LRDIMM memory Individual memory capacity: 16GB, 23GB, 63GB, 128GB, 256GB Memory up to 6TB |
|
Storage |
24 x 2.5" SATA3/SAS3 hot-swappable HDD bays 1 x M.2 |
|
Storage Controller |
RAID card controller, SAS card controller, supporting RAID 0, 1, 5, 10 |
|
Network Interface |
2 x RJ45 Gigabit Ethernet interfaces |
|
Management |
1 x RJ45 interface onboard dedicated to IPMI remote management |
|
PCIe Expansion Slots |
Up to 12 PCIe 3.0 slots Standard slots: 11 x PCIe 3.0 x16, 1 x PCIe 3.0 x8 |
|
I/O Interface |
6 x USB 3.0 (2 rear, 4 front) 1 x VGA interface, 1 x COM interface |
|
Power Supply |
Supports 2+2 2000W redundant power supplies |
|
Operating System |
Windows，ubuntu ，Centos，SUSE、VMware |
|
Operating System |
Temperature: Operating: 10℃～35℃; Non-operating: -40℃～60℃ Humidity: Operating: 8%～90%; Non-operating: 5%～95% (non-condensing) |
