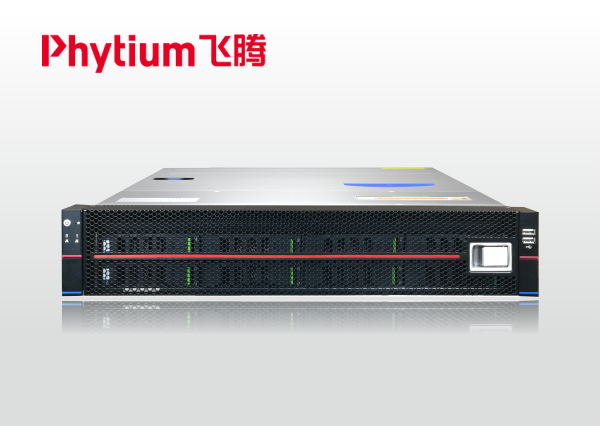

KU 2208-FT Domestic Phytium Server
The Jinpin KU2208-FT is a self-developed, secure, and controllable rack server based on the domestic Phytium S2500 high-performance processor.
The Phytium S2500 chip integrates 64 new generation high-performance processor cores FTC663, adopts the on-chip parallel system (PSoC) architecture, integrates efficient processor cores, large-scale consistent storage structures based on data affinity, and hierarchical two-dimensional Mesh interconnect network to optimize storage access delay.
It provides industry-leading computing performance, memory bandwidth, and IO expansion capabilities. It is compatible with the 64-bit ARMV8 instruction set, supports hardware virtualization functions, integrates system-level security mechanisms, and can meet performance and security requirements in complex application scenarios. It also supports commercial and industrial quality grades.
The product is suitable for high-performance and high-throughput server fields such as big data analysis, cloud computing, finance, and rail transit.
Powerful Performance
The KU2208-FT is a 2U dual-processor server built on the latest generation of Phytium S2500 processors, with up to 128 cores, a single processor TDP of 136W, a high frequency of up to 2.1GHz, single-core 64MB L3 cache and 32MB L2 cache, providing high processing performance.
It supports 16 DDR4 DIMM memory slots, and the memory capacity can support up to 1TB.
Flexible Expansion
It supports 8 hot-swappable 3.5/2.5 inch hard drives, 2 built-in 2.5 inch non-hot-swappable hard drive slots, and optional 2 hot-swappable 2.5 inch hard drive slots.
It provides 6 standard PCIe 3.0 expansion slots, supports a variety of RAID cards, HBA cards, network cards, and other PCIe expansion card types, which can be used to further improve I/O performance.
Secure and Controllable
It supports PSPA 1.0 security standards, supports security mechanisms based on domain isolation, and integrates ROM as a trusted boot root.
It supports domestic security operating systems such as Galaxy Kylin and Tongxin UOS, with strong cross-platform compatibility and high security.
Intelligent Management
Based on the humanized design concept, it can achieve maintenance without tools. By optimizing some structural components, it can be quickly disassembled, greatly reducing the operation and maintenance time.
It is equipped with domestic BIOS and BMC, which can monitor hardware system parameters in real-time through the web management interface, issue warning messages in advance, so that technicians can take corresponding measures, and can quickly locate fault ranges through the indicator lights on the front panel, thereby simplifying maintenance work, accelerating problem-solving speed, and ensuring machine stability.
|
Component |
Description |
|
Specification |
2U rack-mounted |
|
Size |
87.6 x 433 x 695mm(height x width x depth) |
|
Processor |
2 National Chip FT S2500 processors Up to 128 cores, 2.1GHz clock speed Power consumption up to 136W |
|
Architecture |
ARMV8 Architecture |
|
Memory |
16 onboard DDR4 DIMM slots Supports DDR4 ECC RDIMM Memory single module capacity: 8GB, 16GB, 32GB, 64GB Supports up to 1TB of memory |
|
Storage |
Supports 8 hot-swappable 3.5/2.5-inch SATA/SAS hard drives Supports 1 M.2 slot Supports 2 onboard 2.5-inch SATA/SAS non-hot-swappable hard drives Optional: 2 hot-swappable 2.5-inch SATA/SAS hard drives at the rear |
|
Network interface |
Integrated 4 Gigabit Ethernet |
|
PCIe expansion |
Supports 6 PCIe 3.0 expansion slots |
|
Display |
AST2500 |
|
Management |
IPMI2.0 |
|
Other interfaces |
4 x USB 3.0、1 x COM |
|
Firmware |
National independent security firmware |
|
Cooling |
Supports intelligent temperature control, internally equipped with 3 x 8038 fans |
|
Power supply |
Standard 800W 1+1 redundant power supply |
|
Operating system |
Galaxy Kylin V10, UniOS, Ningsi, Kylin TrustKernel and other domestic operating systems |
|
Operating environment |
Operating temperature: 0°C to 40°C, Operating humidity: 10% to 90% |
