Jinpin KX 7050 Portable GPU Workstation
The KX7050 is a GPU-accelerated heterogeneous server based on the first and second generation Intel Xeon Scalable processors.
● Supports 2 NVIDIA Tesla/GeForce series GPU computing cards;
● Features high performance, portability, and cost-effectiveness.
Heterogeneous Acceleration
Supports 2 Intel first and second generation Xeon Scalable processors and utilizes 2 NVIDIA's new Turing architecture GPU accelerators, including CUDA cores, Tensor cores, RT cores, and other features to provide processing speeds that are several times faster than CPUs.
Portability

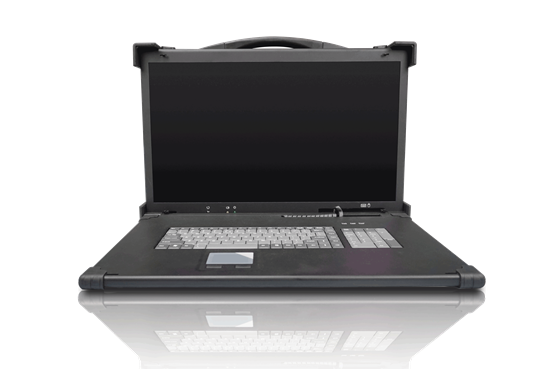

The KX7050 portable GPU workstation features an all-in-one design that combines the chassis, display, keyboard, and mouse, and has a handle that allows for easy movement to any location.
Standard workstations are usually placed in a good office environment or a professional server cabinet, which makes it inconvenient for industries that require on-site or outdoor data computing, data processing, and data storage. For better outdoor applications, portable workstations are a better choice.
Powerful Performance
The KX7050 is a computing platform based on the first and second generation Intel Xeon Scalable processors and supports Nvidia Pascal architecture RTX 2080TI GPU accelerators.
Its single-precision floating-point computing performance can reach 24 trillion calculations per second, and its deep learning computing performance can reach 48 trillion calculations per second, making it an ideal choice for artificial intelligence, deep learning, and HPC applications.
|
Components |
Description |
|
Dimensions |
347 x 542 x 226mm (H x W x D) |
|
Processor |
2 x Intel® Xeon® Cascade-Lake Platinum/Gold/Silver/Bronze series processors |
|
Chipset |
Intel C621 |
|
Memory |
Supports up to 16 DIMM slots Supports DDR4 2933/2666/2400 MHz LRDIMM, RDIMM memory Supports up to 4TB memory |
|
Storage |
Supports 1 x 2.5-inch SSD Supports 1 x M.2 |
|
GPU Support |
2 NVIDIA GPU |
|
Network |
2 x Intel Gigabit Ethernet ports |
|
PCIE Expansion Slots |
4 x PCIe 3.0 x16 expansion slots 2 x PCIe 3.0 x8 expansion slots |
|
Structure |
Black brushed anodized aluminum surface, with a strong internal aluminum alloy chassis structure for high strength |
|
Shock Absorption |
8 shock-absorbing rubber pads on the corners of the chassis 4 shock-absorbing rubber pads on the corners of the keyboard Shock-absorbing rubber rings inside the chassis for the hard drives |
|
Pressure Bar |
Shock-absorbing pressure bars secure all cards in place, with independent locking for cards of different heights |
|
Luggage |
Optional aviation pull-along luggage |
|
Weight |
14KG(SKD） |
|
Optical Drive |
Black-panel laptop optical drive, compatible with CD/CD-RW/DVD/DVD-RW |
|
Keyboard |
Standard keyboard with built-in touchpad |
|
Graphics card |
Dedicated graphics card |
|
LCD Display |
21.5" 1920x1080, high brightness |
|
Display Chip |
AST2500 |
|
Management |
IPMI2.0 |
|
Other Interfaces |
4 x USB 3.0, 1 x COM, 1 x fiber S/PDIF digital audio output interface 1 x USB 3.1 Type A, 1 x USB 3.1 Type C |
|
Power Supply |
1600W, 12V/24V DC input power |
|
Operating Temperature |
10℃～ 35℃（50°F - 95°F） |
|
Storage Temperature |
﹣20 ～ 60℃ |
|
Relative Humidity |
20 ～ 90％ |
|
Shock |
3G |
|
Vibration |
1.5G＠10 ～ 100HZ |
