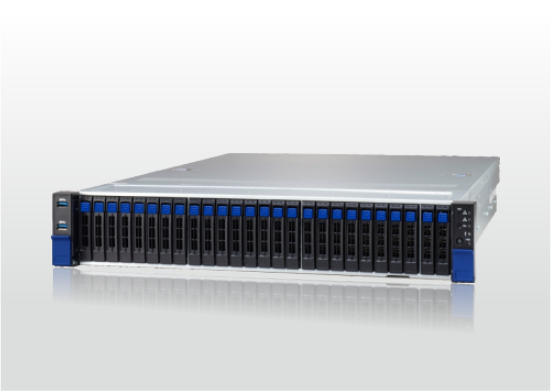

Jinpin KS 2224-A3 All-Flash Storage Server

The KS2224-A3 is a dual-socket AMD mixed-flash server platform launched by Jinpin.

    It supports 2AMD EYPC 7002/7003 processors and 32DDR4 3200 memory slots.

    24*Gen4U.2 NVMe SSDs are all CPU direct pass-through channels.

    The read and write performance of a single Gen4U.2 NVMe SSD can reach up to 6.5GB/s.

    Equipped with Mellanox's 200Gb IB network card, it is a high-performance storage server with a speed of up to 800Gb/s.

    It is very suitable for high-performance storage scenarios such as high-frequency trading, online transactions, real-time analysis, automated driving, virtualization, and batch processing.

Features

Massive Storage

    Supports 2*AMD EPYC™ 7002/7003 Series processors.

    A single machine can have up to 128 cores and 256 threads.

    32*DDR4 memory slots, supporting up to 8TB of capacity.

    Designed with 24Gen4 U.2 NVMe SSDs and 22.5-inch SATA disk installation positions in a limited 2U space.


Rich Expandability

    After fully loaded with 24Gen4 U.2 NVMe SSDs, there are still 2PCI-e 4.0 16x and OCP3.0 expansion interfaces available, allowing easy installation of various standard PCIe devices such as dual-width GPU computing cards, SAS storage cards, and even 200Gb IB network cards.

Stable Cooling System

    Supports 66038 high-power cooling fans, enabling stable operation of up to 280W processors and 2GPU computing cards.


Ease of Maintenance

    Supports Linux, Windows, and MAC operating systems, as well as cluster computing applications developed based on the above systems, compatible with various other application software, and hardware devices can be replaced online without any changes required.

    The control interface is simple and user-friendly, providing clear information on the system's running status, workload of each node, storage space usage, and performance curve changes, making management very convenient.

Specifications

Component

Description

Specifications

2U Rackmount

Size

87 x 438.4 x 750.8mm (H x W x D)

Processor

2 x AMD EPYC™ 7002/7003 Series processors, up to 280W

Memory

Supports 32 DDR4 ECC RDIMM memory Frequency

support up to 2666/2933/3200MHz

Supports up to 8TB of memory

Storage

Supports 26 x 2.5" NVMe hard drives

Network

Intel X550-AT2 dual 10G network

PCIe expansion

2 PCIe 4.0 x16 expansion slots

1 OCP3.0 slot

Display

AST 2500

Management

IPMI 2.0

Other interfaces

VGA4 x  USB3.0COM

Power supply

Platinum 1600W 1+1 redundant

Operating system

Microsoft Windows Server

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

CentOSUbuntu

Working environment

Operating temperature: 5°C to 35°C, Operating humidity: 8% - 90%.
