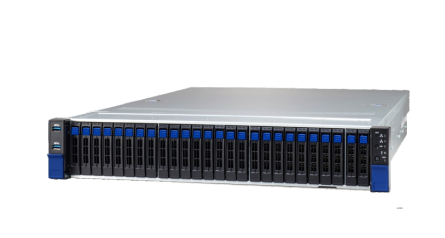

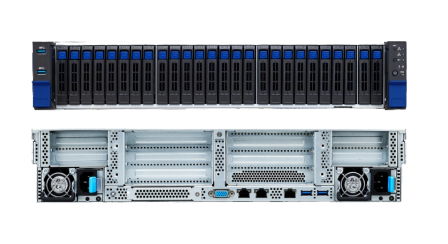

Jinpin KS 2226-CX AMD All-flash Storage Server
2U rack-mounted all-flash storage server, with a single U.2 NVMe SSD providing up to 6.5GB/s read/write performance, equipped with Mellanox's 200Gb IB network card to build a high-performance storage server of up to 800Gb/s; suitable for high-performance storage scenarios such as high-frequency trading, online trading, real-time analysis, virtualization, and batch processing applications.
● CPU: 2AMD EPYC™ 7542 32-core 2.9GHz
● Memory: 256GB DDR4 ECC RDIMM
● System Disk: 2Intel 480GB data center-grade SSD
● Data Disk: 24Intel P4510 series 4TB U.2 interface NVMe solid-state drive
● Array: Supports RAID 0/1/5/10/6/50/60/JBOD
● Network: 2200GB/s IB network interface
● Power supply: 1600W 1+1 redundant power supply
Powerful performance
Supports 2AMD EPYC™ 7002/7003 Series processors, with up to 128 cores and 256 threads per machine. 32DDR4 memory slots, supporting up to 8TB of capacity.
Rich expandability
With 24 U.2 interface NVMe SSDs fully loaded, there are still 2 PCIe 4.0 16x and OCP 3.0 expansion interfaces available for easy installation of standard double-width GPU computing cards/SAS storage cards/and even 200Gb IB network cards and other standard PCIe devices.
High-density and high-performance large-capacity storage
Designed with a 2U rack-mounted form factor, it accommodates 24U.2 NVMe SSDs and 22.5-inch SATA disk installation positions in limited space.
Stable machine body cooling system
Supports 66038 high-power cooling fans, capable of supporting stable operation of 280W processors and 2GPU computing cards.
Ease of maintenance
The integrated iKVM function can remotely operate and maintain the server, providing fault indication functions and improving maintenance efficiency.
|
Processor |
2AMD EPYC™ 7002/7003 Series processors (up to 280W TDP) |
|
Memory |
24DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 Supports up to 4096GB RDIMM / 8192GB LRDIMM 3DS |
|
Hard Drives |
24Gen4 U.2 NVMe SSDs and 2SATA 2.5-inch drives |
|
GPU |
2 NVIDIA Quadro/Tesla series GPU cards or GeForce RTX 3060/3080/3090 series graphics cards |
|
External Interfaces |
Front: 2 USB3.0 ports Rear: 2 USB3.0 ports, 1 IPMI port, 1 VGA port, 2 10GBase-T RJ-45 ports |
|
Buttons |
Front: 1 power button, 1 reset button, 1 ID button |
|
Power Supply |
1600W 1+1 hot-swappable redundant power supply |
|
Operating System |
Windows /10/2016/2019 Centos/Redhat /7.6/8.0/8.1 Suse SLES 11sp4/12sp2 Ubuntu 18.04; Vmware ESXI 6.5; Xen Server 7.1 |
|
Operating Temperature |
0℃～35℃ |
|
Operating Humidity |
8％-90％relative humidity |
|
Size |
750.8mm*438.4mm*87mm(depth * width * height) |
