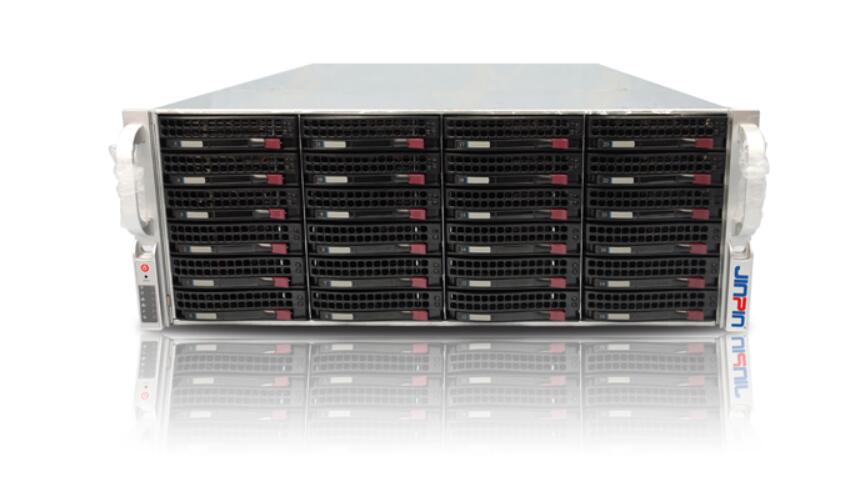

KS 4224 24-disk storage server
KU4412-V2 is a 4U 24-bay storage server launched by Jinpin, which provides a significant improvement in storage performance compared to traditional products. It is suitable for small-scale critical production businesses, such as small databases like MySQL and SQL, as well as for massive unstructured data business scenarios, such as video surveillance data storage, audio and video data storage, archive storage, backup data storage, etc. It can be flexibly configured according to different application business needs, and with its rich data management functions, it can provide users with multiple solutions such as IP/FC SAN high-speed access, continuous data protection, and operating system protection.
As a professional and advanced data security storage system, the product complies with the PACE specification for enterprise data center planning and design and can help users achieve the value goal of "making the data center simpler".
Massive Storage

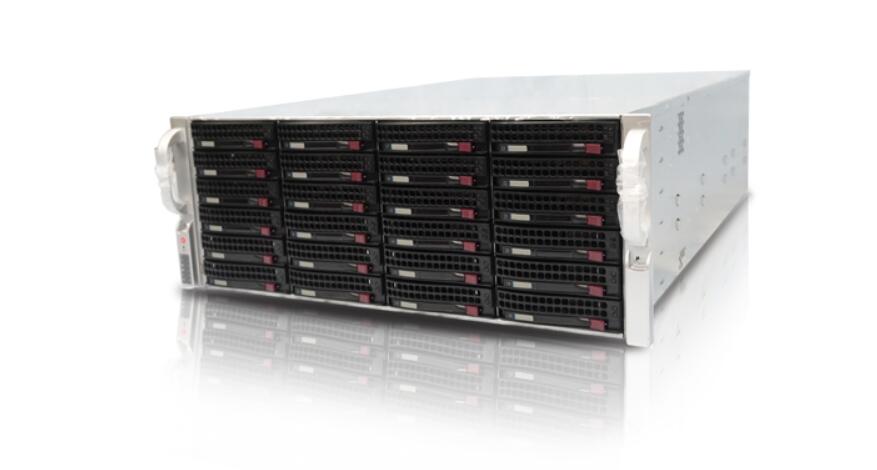

Can support 24 3.5" SAS/SATA hard drives and can be equipped with 2 non-hot-swappable 2.5" hard drive bays.

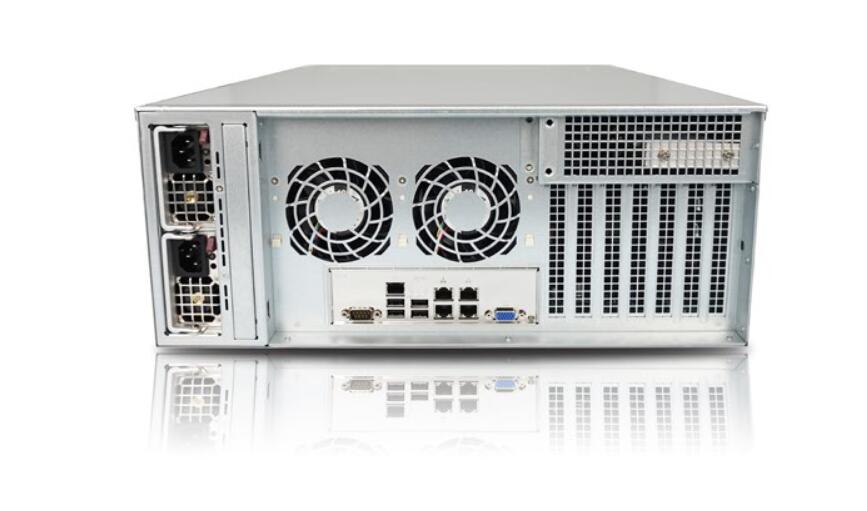

Optional rear 2 hot-swappable 2.5" hard drive bays provide a larger storage space.
Excellent storage I/O brings a leap in storage performance and provides data tiered storage.
Multiple Scenarios, Excellent Performance
Medical imaging, financial securities, firewalls, enterprise databases, domain name resolution systems, broadcast systems, etc.
Can support 6 PCIe expansions, which can be used to further improve I/O performance.
Multiple storage modules, I/O modules, network modules, GPU modules can realize different combinations of multiple application scenarios, and users can flexibly choose configurations according to business needs.
Reliable and Stable, Green and Energy-Saving
The product is designed to be reliable in terms of seismic, overcurrent and overvoltage protection, hot-swappable, and has undergone rigorous stability, performance, and heat dissipation testing to ensure stable operation.
Supports multiple energy-saving technologies such as fan intelligent speed regulation, hard disk energy-saving technology, intelligent power management, dynamic PSU sleep, and is equipped with excellent power consumption management technology to help users accurately monitor and control system power consumption in real-time.
Compatibility and Flexibility
The control interface is concise and user-friendly, and the system's operating status, the workload of each node, the space utilization of storage, performance curve changes, etc. are all clear at a glance, making management very convenient.
Component |
Description |
Form Factor |
4U Rackmount |
Dimensions |
670mm(D) x 433mm(W) x 177mm(H) |
Processor |
2nd Generation Intel® Xeon® Scalable Processors CPU (Cascade Lake-SP) |
Chipset |
Intel® C621 |
Memory |
Supports 8 DDR4 DDR4 ECC RDIMM/LRDIMM memory modules Frequency support up to 1866/2133/2400/2666/2933MHz Supports up to 2TB of memory. |
Storage |
24x 3.5" hot-swappable drive bays (or 2.5"); 2x 2.5" internal drive bays (non-hot-swappable); Optional 2x hot-swappable rear 2.5" drive bays |
RAID |
RAID 0/1/5/10/50/60/JBOD |
Network |
Dual LAN and 1GbE with Intel® X722 |
PCIe Expansion: |
2x PCI-E 3.0 x16; 3x PCI-E 3.0 x8; 1x PCI-E 3.0 x4 (in x8 slot); 1x SATA/PCI-E 3.0 x4 |
Display |
AST2500 |
Management |
IPMI 2.0 |
Other Interfaces |
4 x USB 2.0、3 x USB 3.0、1 x COM |
Power Supply |
Platinum 800W 1+1 redundant power supply |
Operating System |
Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server、CentOS、Ubuntu |
Operating Enviornment |
Temperature:5℃~ 35℃, Humidity:8% - 90% |
