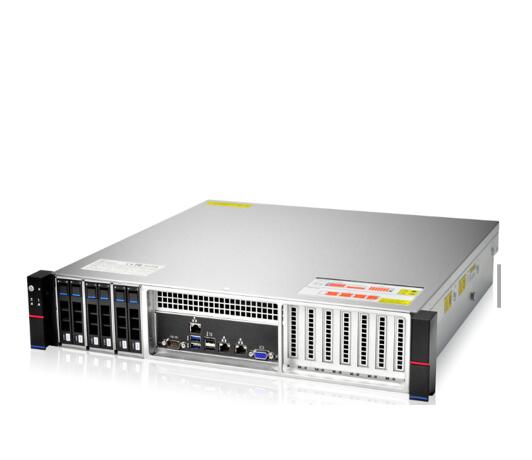

JINPIN KU 2206-SE Edge calculation
CPU: Intel® Xeon® Gold 4214 12 core 2.2GHz
Memory: 16GB DDR4 ECC RDIMM
Hard Disk: 240GB Data Center SSD
Network: Intel® X722 dual Gigabit network
Power supply: 550W (1+1) platinum redundant power supply
Basic configuration for reference only
Designed according to the "OTII Server Technical Specification", the whole machine has a depth of 450mm,
and can work at a temperature between 0°C and 40°C for a long time. It meets the requirements of carrier-grade EMC and earthquake resistance,
and is suitable for mass deployment in edge computer rooms.
Supports dual-socket Intel®Xeon®Cascade-Lake expandable processors, 4TB DDR4 RECC memory, excellent computing performance in 2U space,
supports 6 2.5-inch SAS/SATA disks, and supports NVIDIA GPU accelerated computing, small size , Great achievements.
The IO interface front design is more conducive to the operation of maintenance personnel. Based on the BMC management module,
it provides management functions such as SOL, remote KVM, remote power on and off, system monitoring, virtual media mapping, and deployment of operating systems, thereby simplifying maintenance work and speeding up problem solving , And improve system availability.
|
Specifications |
2U rack type; 89mm × 437mm × 450mm (H × w × d) |
|
CPU |
Intel® Xeon® Platinum/Gold/Silver/Bronz series processor |
|
Chipset |
Intel® C621 |
|
UPI |
10.4 GT/s |
|
Memory |
16 DIMM sockets, support 4TB DDR4 3DS ECC rdimm 2666/ 2933memory |
|
storage |
6 x 3.5-inch SAS / SATA 6gbps hot swappable hard disks |
|
RAID |
RAID 0, 1,10,5 |
|
network |
Intel ®x722 dual Gigabit Network |
|
PCIe extension |
2 PCI-E 3.0 x8、4 PCI-E 3.0 x16 |
|
extension |
Aspeed AST2500 |
|
Administration |
IPMI 2.0 |
|
Other interfaces |
VGA、4×USB、IPMI、COM |
|
Power Supply |
550W 1+1 platinum power supply |
|
OS |
Windows 7/8.1/10/2012R2/2016/2019 Centos/Redhat 6.9/7.3/7.4/7.5; Suse SLES 11sp4/12sp2 Ubuntu 16.04/18.04; Vmware ESXI 6.5; Xen Server 7.2 |
|
working temperature |
0℃～40℃ |
|
Working humidity |
8%-90％RH |
