Jinpin KU 2108-CX

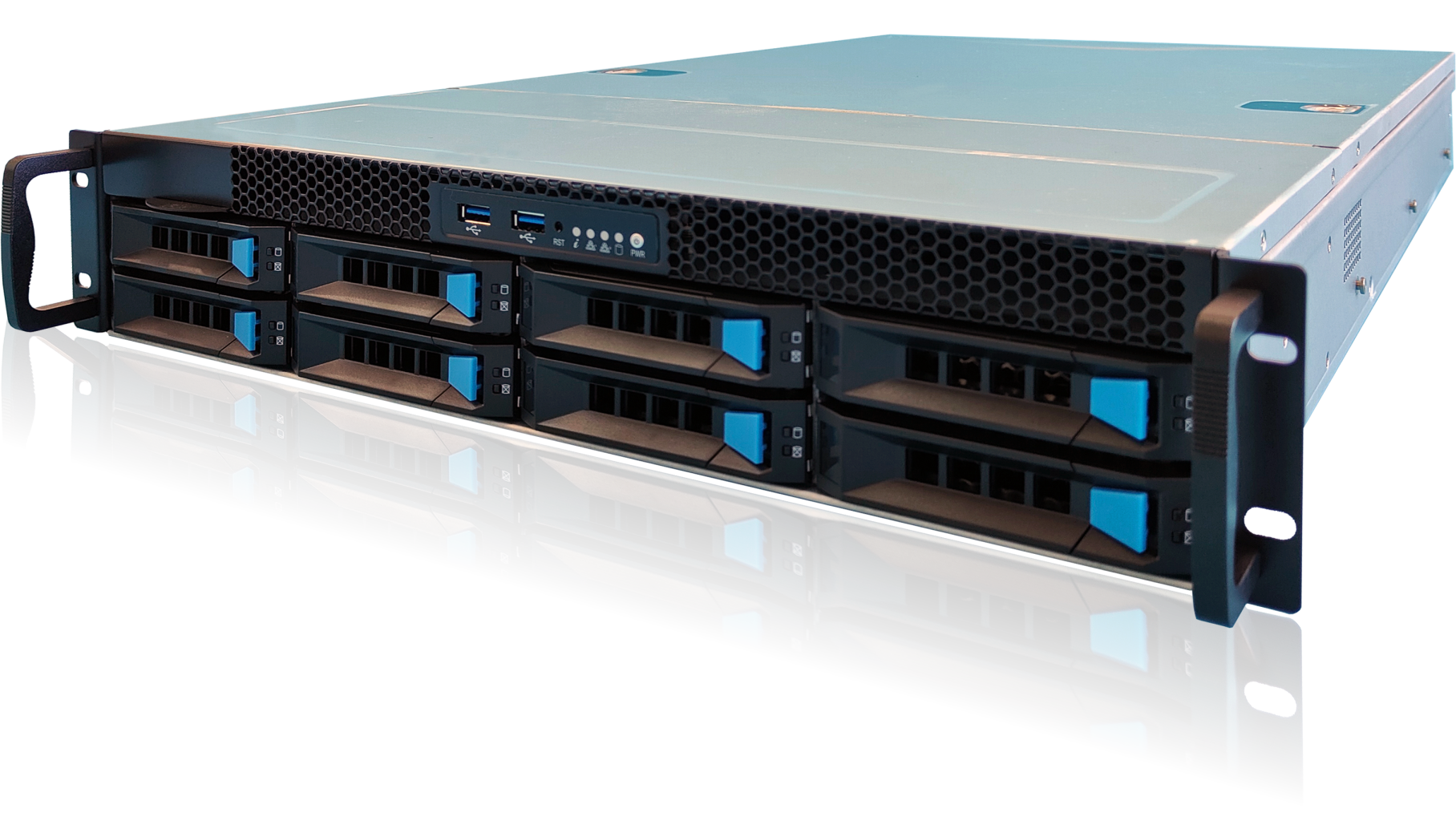

The KU 2108-CX is a 2U rack-mounted AMD high-performance server from Jinpin.

 CPU: 1 * AMD EPYC™ 7402 24-core, 48-thread processor with a base clock speed of 2.8GHz.

 Memory: 1 * 16GB DDR4 ECC RDIMM 2933 memory.

 Storage: 1 * 480GB SSD.

 Networking: Dual Gigabit Ethernet ports.

 Power Supply: 2U 800W 1+1 redundant power supply.


High Performance:

    Supports single AMD EPYC™ 7002/7003 (with AMD 3D V-Cache™ Technology) series processors.

    One processor can have up to 64 cores and 128 threads, with 8 channels of 2TB DDR4 ECC RDIMM memory, twice the number of cores compared to Intel processors, making it suitable for a variety of complex computing scenarios.

High Expandability:

    Supports 6 PCI-E 4.0 slots, including 2 PCI-E 4.0 x16 slots, with twice the bandwidth of PCI-E 3.0, which can support 2 full-height, full-length GPU computing cards.

Convenient Management:

    With the BMC management module, it provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and OS deployment functions, realizing convenient system management and reducing operation and maintenance costs.

Application Scenarios:

    Suitable for applications that require a balanced combination of storage and computing, such as cloud computing, virtualization, high-performance computing, big data, artificial intelligence, deep learning, and more.



2U rack-mounted; 650mm x 440mm x 89mm (depth x width x height).


Standard 1 * AMD EPYC™ 7402 24-core, 48-thread 2.8GHz processor

supports single AMD EPYC™ 7002/7003 (with AMD 3D V-Cache™ Technology) series processors.


Standard 1 * 16GB DDR4 ECC RDIMM 2933 memory

with 16 DIMM slots, supporting up to 2TB DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM memory.


Standard 1* 480G SSD

Supporting up to 8 SAS/SATA 12Gbps 3.5-inch/2.5-inch hot-swappable hard drives, and 2 U.2 NVMe disks internally.


Optional RAID card, supporting RAID 0, 1, 5, 6, 10, 50, 60.


Broadcom BCM5720 dual-port Gigabit Ethernet.

PCIe Expansion

4 PCI-E 4.0 x8 2 PCI-E 4.0 x16


Aspeed AST2500


IPMI   2.0

Other Interfaces


Power supply

800W 1+1 redundant power supply (1200W optional).

Operating System

Windows 8.1/10/2012R2/2016/2019

Centos/Redhat 6.9/7.3/7.4/7.6   Suse SLES 11sp4/12sp2

Ubuntu 16.04/17.04/18.04; Vmware ESXI 6.5; Xen Server 7.2

Operating Temperature


Operating Humidity
