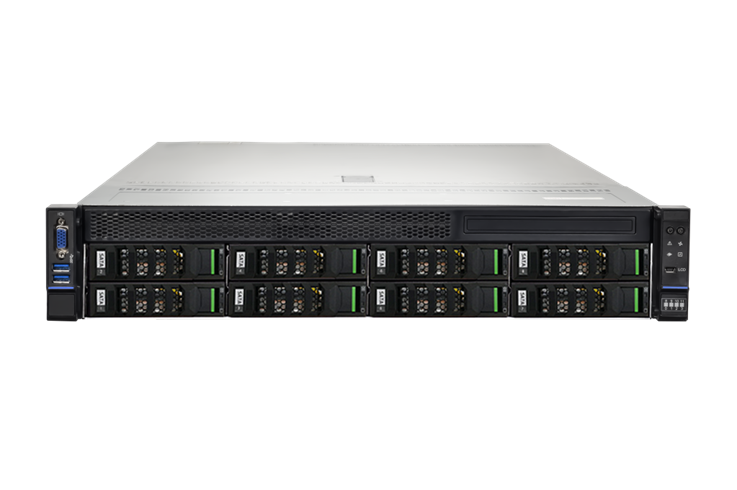

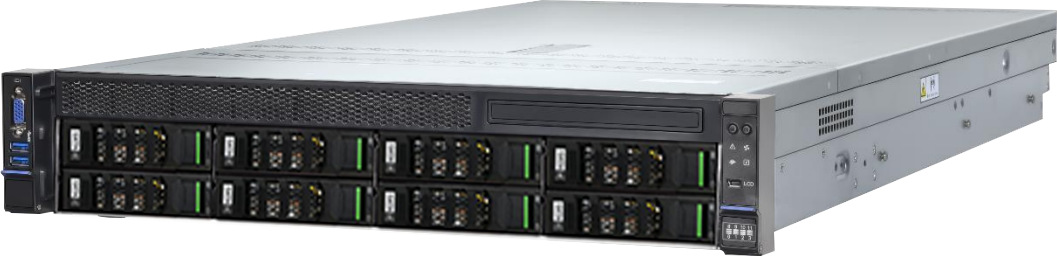

The KU2208-V2

The KU2208-V2 is a 2U dual-processor server from Jinpin, supporting the SkyLake & CascadeLake series processors and achieving comprehensive breakthroughs in computing, storage, and network performance.

Based on an innovative server hardware modular design concept and technology, it allows for flexible configuration according to business needs, with PCIe slots that can be swapped with disks, and a rear PCIe slot that can be replaced with up to 6 hard disk bays.

With outstanding cost-effectiveness and energy efficiency, it can be widely used in applications such as the Internet, cloud computing, databases, high-performance computing (HPC), and big data.

Special Price: 2400 USD for bisic configuration


Superior computing power

    Supports the full line of Intel Xeon Scalable series processors (SkyLake & CascadeLake).

    Supports 2 high-power GPUs and has 2 native M.2 interfaces on the motherboard for high computing power.

    Significantly improved in core, frequency, cache, and interconnect channels, with DDR4 memory technology and support for up to 3TB of memory expansion.

    Expandable as needed to meet the high computing power demands of applications such as digital currency, cloud computing, big data, and virtual computing.

Ultra-strong scalability

    Supports 24 DDR4 ECC RDIMM/LRDIMM memory slots, providing excellent speed, high availability, and up to 3TB of memory capacity.

    Supports 8 3.5"/2.5" SAS/SATA/NVMe hot-swappable hard drives in the front and 4 3.5" or 8 2.5" hot-swappable hard drives in the rear.

    Comes with 10 PCIe expansion slots for OCP3.0 network cards and 2×25Gb SFP28 network configuration, and the rear PCIe slot can be replaced with 6 hard disk bays.

Modular design for safety and stability

    Based on a user-friendly design concept, it has optimized certain structural components for quick disassembly and greatly shortened maintenance time.

    Equipped with advanced intelligent temperature control technology and an advanced air cooling system, it can work in the best environment to ensure stable system operation.

    Uses the latest BMC technology to guide device management through a web interface, fault diagnosis LEDs, and UID indicator lights on the front panel to quickly locate faulty components that have occurred (or are occurring), simplify maintenance work, accelerate problem solving speed, and improve system availability.

    Monitors system parameters through BMC to issue advance warning messages, allowing technicians to take appropriate measures to ensure stable machine operation and reduce the chance of crashes.

AI intelligent remote management

    Supports HTMI5IPMI remote management, allowing for real-time monitoring and operations including power on/off, ensuring timely system maintenance by system administrators.

    Implements true redundancy architecture, including fans, power supplies, and storage.





2U rack-mounted server, 748*433.4*87.6mm (depth/width/height)


2 Intel® Xeon® Skylake/Cascade Lake series processors, up to 205W


Intel® C621


Supports 24 DDR4 ECC RDIMM/LRDIMM memory

Supports frequencies of 1866/2133/2400/2666/2933MHz

Supports up to 3TB of memory


Supports 8 x 3.5"/2.5" SAS/SATA/NVMe hard drives

Includes 2 built-in 2.5" hard drives

Supports 2 x M.2 hard drives


Intel® C621 dual Gigabit Ethernet


IPMI 2.0

PCIe expansion

10 PCIe expansion slots

1 OCP3.0 expansion slot



Other interfaces

2 x VGA1 x COM4 x USB 3.0


Standard configuration includes 4 8038N+1 hot-swappable redundant fans

Power Supply

Optional platinum-level redundant power supply: 550W, 800W, 1200W, 1600W

Operating System

Windows ServerCentos/Redhat

SuseUbuntuVmware ESXIXen Server

Operating Environment

Tempurature10℃ 35℃Humidity5%  95%
