Jinpin KU 2424-V2 General Server

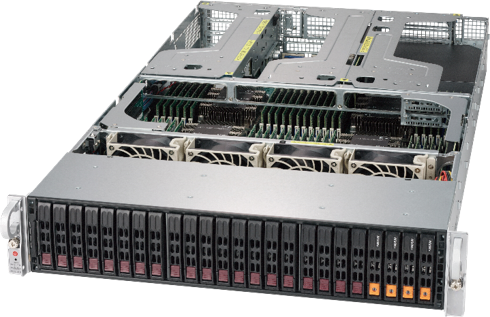

The KU 2424-V2 is a 2U rack-mounted server from Jinpin, designed for virtualization, high-performance computing, databases, quantum physics, biochemistry, and other applications. The 2U chassis accommodates four 2nd Generation Intel® Xeon® Scalable processors, providing a total of 112 cores and 224 threads, with support for up to 12TB of memory. The server also supports 24 hot-swappable 2.5-inch SATA/SAS hard drives, with support for up to four U.2 drives. Multiple NVMe SSDs can be used to enhance performance, and the server supports two FHFL GPUs for powerful heterogeneous computing. The server can be flexibly configured to meet business needs, providing excellent cost-effectiveness and energy efficiency.


Superior Performance

    Four 2nd Gen Intel® Xeon® Scalable processors with CPU TDP up to 205W

    Supports up to 28 cores per CPU and 8 channels of memory per CPU, with support for up to 48 3200MHz DDR4 memory modules

    Total of 112 cores and 224 threads with 12TB of memory in a single machine

Extensive Expandability

    24 hot-swappable 2.5" SATA/SAS hard drive bays, with support for up to 4 U.2 drives

    Supports 11 PCIe 3.0 expansion slots

    Supports 2 full-height, full-length, double-width GPUs

Easy Management

    BMC management module provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and operating system deployment

    Simplified maintenance through a web interface, accelerating issue resolution and improving system availability

Application Scenarios

    Meteorology forecasting, quantum physics, biochemistry, smart city, broadcasting systems, animation production research, PACS systems, license plate recognition, media asset management systems, etc.


Form factor

2U rackmount


Width 447mm x Height 87mm x Depth 763mm (including ears 783mm)


2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) LGA3647 CPU

Power consumption



Intel®  C621



Memory slots

       48 DIMM slots

       2933/2666MHz ECC DDR4 RDIMM/LRDIMM

    Maximum memory: 12TB 3DS ECC DDR4 2666-2933MHz RDIMM/LRDIMM

    Supports Intel® Optane™ DCPMM


       24 hot-swappable 2.5" SAS3/SATA3 drive bays

    Optional: 20 SAS3 ports via AOC + 4 NVMe ports via AOC


4 x Gigabit Ethernet ports

PCIe Expansion

5 x PCI-E 3.0 x8 slots

6 x PCI-E 3.0 x16 slots

Other interfaces

1 x VGA1 x COM 2 × USB 3.0(back)IPMI2.0

Power supply

1600W redundant power supply, Titanium level (96% conversion rate)

Operating systems

Windows Server 2008R2/2012R2/2016/2019

Centos/Redhat 6.7/7.1/7.2/7.3; Suse SLES 11/12

Ubuntu 14.04/15.10; Vmware ESXI 6.0/6.5; Xen Server 6.5

Operating environment

Temperature range 10℃ to 35℃, Humidity 8% - 90% (non-condensing)
