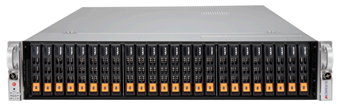

Jinpin KU 2424-V3 2U Quad Socket Server

The KU2424-V3 is a 2U four-socket rack server from Jinpin, which features four 3rd Generation Intel Xeon Scalable processors in a compact form factor, providing up to 112 cores and 224 threads per system, supporting up to 18TB of memory.

It has 24 hot-swappable 2.5" NVMe/SAS3/SATA3 hard drives, which have low latency and power consumption, and are suitable for a variety of applications. Additionally, it supports four FHFL GPUs, enabling powerful heterogeneous computing and easy management for high-load tasks, which can be configured flexibly according to business needs, achieving excellent cost-performance and energy efficiency.


Excellent Performance

    Four 3rd Gen Intel Xeon Scalable processors, with CPU TDP up to 205W

    Supports up to 28 cores per CPU and 8-channel memory, up to 48 3200MHz DDR4 memory

    Provides 112 cores and 224 threads per system, supporting up to 18TB of memory


Rich Expansion

    24 hot-swappable 2.5" NVMe/SAS3/SATA3 hard drives

    Supports 10 PCIe 3.0 expansion slots

    Supports 4 FHFL GPUs


Easy Management

    BMC management module provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, OS deployment and other management functions

    Web interface simplifies maintenance work, speeds up problem resolution, and improves system availability


Application Scenarios

    Widely used in AI, business intelligence, ERP, CRM, scientific virtualization, in-memory databases, HCI, SAP HANA and many other industries




Form Factor

2U rack-mounted; 89 x 439.5 x 803mm (H x W x D)


4 x Intel® Xeon® Ice Lake series processors, up to 270W


Intel® C621


Supports 48 x DDR4 ECC LRDIMM/RDIMM memory

Supports frequencies of 2666/2933/3200MHz

Supports up to 12TB


Supports 24 x 2.5" SAS/SATA/NVMe hard drives

Supports 2 x M.2 hard drives


2x 10GbE BaseT + 2x 10GbE SFP+ Intel® X710-TM4

(Optional) AIOM 100G QSFP 28

PCIe Expansion

4 x PCIe 3.0 x16 expansion slots

2 x PCIe 3.0 x8 expansion slots

4 x PCIe 3.0 x8 expansion slots (optional)


IPMI 2.0

Other Interfaces


Power Supply

Titanium-grade 1600W 1+1 redundant

Operating System

Windows ServerCentos/Redhat

SuseUbuntu Vmware ESXI Xen Server

Operating Environment

Operating temperature: 10℃~35℃, Operating humidity: 8%~90%
