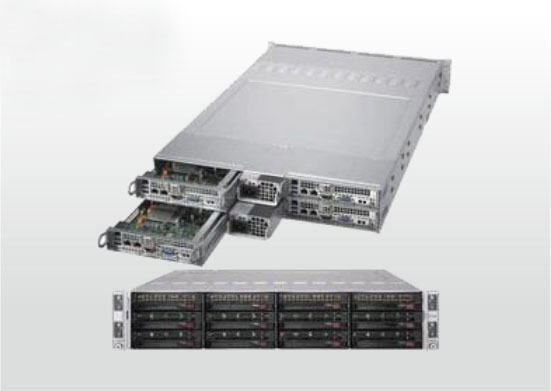

Jinpin KN 2204-V2 Quad-Node Server
KN 2204-V2 Quad-Node Server is a platform provided by Jinpin to support the internet, cloud computing, high-performance computing (HPC), service providers, and large-scale horizontally scalable computing server clusters. It offers exceptional throughput, storage, networking, I/O, memory, and processing capabilities in a 2U form factor. Customers can meet challenging IT requirements through its solutions and benefit from special total cost of ownership (TCO) advantages.
Compared to traditional rack-mounted servers, the 2U dual-node servers require less rack space and have lower energy consumption and heat dissipation per server, significantly reducing data center operating costs with lower total investment, simplified installation, and converged computing.
Excellent Performance
Each node supports the second generation of Intel® Xeon® Scalable Processors (Cascade Lake/Skylake);
Supports up to 32 DDR4 memory with a frequency of 2933MHz, supporting up to 6TB of memory;
2U dual-node servers come with central heat dissipation fans and 2 shared titanium (96%) hot-swappable power supplies.
Rich Expansion
Each node supports 12 hot-swappable 3.5-inch hard drives;
Each node has up to 1 half-height half-length PCI-E 3.0 x16 expansion slot.
Easy Management
BMC management module provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, deployment of operating systems, and other management functions;
The web interface simplifies maintenance work, speeds up problem-solving, and improves system availability.
Application Scenarios
Applicable to artificial intelligence (AI), business intelligence, ERP, CRM;
Scientific virtualization, in-memory databases, HCI, SAP HANA, and many other industries.
|
Component |
Description |
|
Specification |
2U rack-mounted |
|
Size |
88 x 438 x 724(H x W x D) |
|
Processor |
2 Intel® Xeon® Skylake/Cascade Lake series processors; up to 140W |
|
Chipset |
Intel® C621 |
|
Memory |
Supports 8 DDR4 ECC RDIMM/LRDIMM memory modules Frequency support 2666/2933MHz Supports up to 4TB memory |
|
Storage |
Supports 3 x 3.5"/2.5" SATA hot-swappable hard drives 1 x M.2 hard drive |
|
RAID |
RAID 0/1/5/10/50/60/JBOD |
|
Network |
2 x Intel® X722 1Gbps network ports |
|
PCIE expansion |
1 x PCI-E 3.0 x8 expansion slot |
|
Display |
AST2500 |
|
Management |
IPMI 2.0 |
|
Other interfaces |
VGA、2 x USB3.0、1 x COM |
|
Power supply |
Titanium-level 1600W 1+1 redundant power supply |
|
Operating system |
Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server、CentOS、Ubuntu |
|
Working environment |
Working temperature: 10°C to 35°C, working humidity: 8% - 90% |
