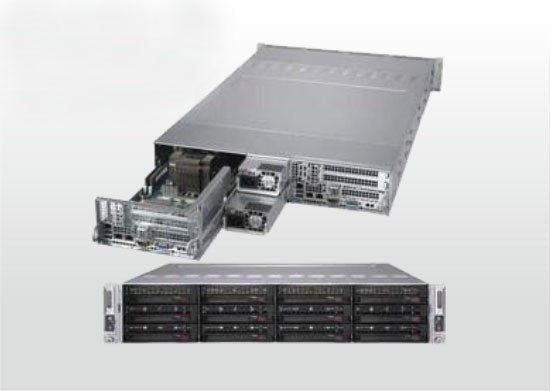

Jinpin 2202-V2 Dual-node Server
KN 2202-V2 Dual-node Server is a platform provided by Jinpin for Internet, cloud computing, high-performance computing (HPC), service providers, and large-scale horizontally-scalable computing server clusters.
It focuses on providing solutions for data centers to horizontally expand X86 servers, while bringing new economic benefits to data centers in terms of server density, energy efficiency, thermal optimization, and overall ownership cost.
Compared with traditional rack servers, the 2U dual-node server requires less rack space, and each server has lower power consumption and heat dissipation. With lower total investment, it can significantly reduce the operating costs of data centers, simplify installation, and aggregate computing.
Outstanding Performance
Each node supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake);
Supports up to 16 DDR4 memory modules running at 2933 MHz, with support for up to 4TB of memory;
The 2U dual-node server comes with central cooling fans and two shared titanium-grade (96%) hot-swappable power supplies.
Extensive Expansion
Each node supports up to 6 hot-swappable 3.5-inch hard drives;
Each node has up to 2 full-height half-length PCIe expansion slots.
Easy Management
The BMC management module provides management functions such as SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and OS deployment;
The web interface simplifies maintenance work, speeds up problem solving, and improves system availability.
Application Scenarios
Suitable for various industries such as artificial intelligence (AI), business intelligence, ERP, CRM, scientific virtualization, in-memory databases, HCI, SAP HANA, etc.
|
Component |
Description |
|
Specification |
2U Rackmount |
|
Size |
88 x 447 x 765mm (H x W x D) |
|
Processor |
2 x Intel® Xeon® Skylake/Cascade Lake processors, up to 140W |
|
Chipset |
Intel® C621 |
|
Memory |
Supports 8 x DDR4 ECC RDIMM/LRDIMM memory Frequency support 2666/2933MHz Supports up to 4TB memory |
|
Storage |
Supports 6 x 3.5"/2.5" SATA hot-swappable hard drives 1 x M.2 hard drive |
|
Network |
2 x Intel® X722 Gigabit Ethernet |
|
PCIe Expansion |
2 x PCI-E 3.0 x8 slots 1 x PCI-E 3.0 x4 slot |
|
Display |
AST2500 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、2 x USB3.0、1 x COM |
|
Power Supply |
Platinum level 1200W 1+1 redundant |
|
Operating System |
Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server、CentOS、Ubuntu |
|
Operating Environment |
Operating temperature: 10℃ to 35℃, Operating humidity: 8% to 90% |
