Jinpin KN 2212-G4 Four-node Server

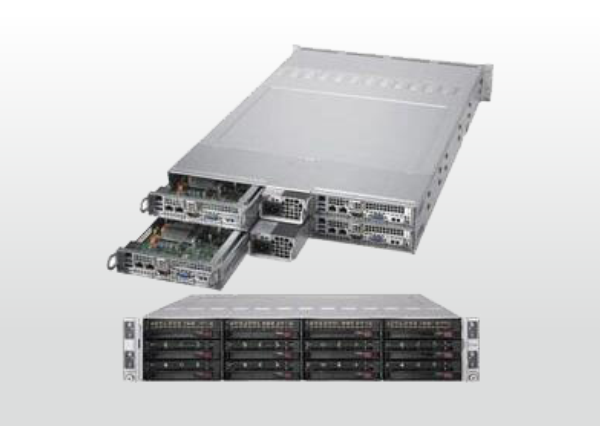

Jinpin KN 2212-G4 Four-node Server adopts a 2U rack structure with dual scalable processors, suitable for various application scenarios.
● CPU: Intel® Xeon® Silver 4214 12-core 2.2GHz
● Memory: 32GB DDR4 ECC RDIMM
● Hard drive: 480G data center-grade SSD
● Network: Intel® dual gigabit network
● Power supply: 1600W (1+1) redundant power supply
The basic configuration is for reference only and can be adjusted according to user application requirements.
High Performance
Each node supports two Intel® Xeon® Cascade-Lake Platinum/Gold/Silver/Bronze scalable processors and six-channel 2TB DDR4 ECC RDIMM memory, providing users with up to 50% performance improvement to meet various application scenarios.
High Efficiency and Energy Saving
The system adopts a unique design of multi-node shared power supply and shared heat dissipation to improve hardware resource utilization. The efficient 1+1 redundant power supply design is more energy-saving than other schemes and reduces data center PUE.
Easy Maintenance and Management
The nodes, hard drives, and power supplies are hot-swappable, reducing maintenance difficulties. The BMC management module provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and OS deployment management functions to achieve convenient system management and reduce operation and maintenance costs.
Application Scenarios
Cloud computing, hyper-convergence, HPC, and other compute-intensive application scenarios.
|
Specifications |
2U rack; 88mm×438mm×724mm (H x W x D) |
|
Processor |
Intel® Xeon® Platinum/Gold/Silver/Bronze Scalable Processors (TDP 140W) |
|
Chipset |
Intel® C621 |
|
UPI |
10.4 GT/s |
|
Memory |
8 DIMM slots, support up to 2TB DDR4 3DS ECC RDIMM 2400/2666/2933 memory |
|
Storage |
12 hot-swappable 3.5-inch SATA hard drives |
|
RAID |
RAID 0, 1,10,5 |
|
Network |
Intel® C621 Dual Gigabit Ethernet |
|
PCIe Expansion |
1 PCIe 3.0 x16 |
|
Display |
Aspeed AST2500 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、 2×USB 3.0、IPMI、COM |
|
Power Supply |
1600W 1+1 Platinum Level |
|
Operating System |
Windows 8.1/10/2012R2/2016/2019 Centos/Redhat 6.9/7.3/7.4; Suse SLES 11sp4/12sp2 Ubuntu 16.04/17.04; Vmware ESXI 6.5; Xen Server 7.2 |
|
Operating Temperature |
10℃～35℃ |
|
Operating Humidity |
8%-90％relative humidity |
