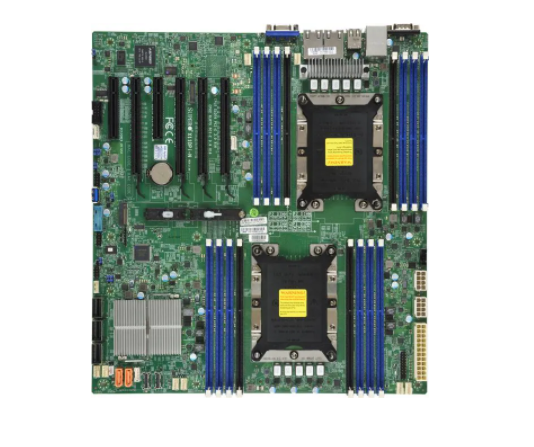

Supermicro X11DPI-N Motherboard
● support dual Intel® Xeon® Scalable Processors and Intel®Xeon®Scalable Processors；
● Supports 16 memory slots.
● support 4 PCI-E 3.0 x16,2 PCI-E 3.0 x8,2 PCI-E 3.0 NVMe x4 Internal Port(s)；
● M.2 Interface: PCI-E 3.0 x4；
● M.2 Form Factor: 2260, 2280, 22110；
● M.2 Key: M-Key。
1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s；
2. Intel® C621；
3. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Or 2TB Intel© PMem, DDR4-2666MHz, in 16 DIMM slots；
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
4. 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 2 PCI-E 3.0 NVMe x4 Internal Port(s)
M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110，M.2 Key: M-Key；
5. Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10；
6. Dual LAN with 1GbE LAN with Intel® X722；
7. 1 VGA por；
|
Product SKUs |
|
|
MBD-X11DPI-N |
X11DPI-N |
|
Physical Stats |
|
|
Form Factor |
E-ATX |
|
Dimension |
12" x 13" (30.48cm x 33.02cm) |
|
Processor |
|
|
CPU |
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors; Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s; |
|
Core |
Up to 28 cores |
|
Note |
BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors- SP |
|
System Memory |
|
|
Memory Capacity |
16 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); |
|
Memory Type |
2933/2666/2400/2133MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
|
DIMM Sizes |
LRDIMM: 128GB RDIMM: 64GB |
|
Memory Voltage |
1.2V |
|
Error Detection |
Corrects single-bit errors Detects double-bit errors (using ECC memory) |
|
On-Board Devices |
|
|
Chipset |
Intel® C621 |
|
SATA |
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
|
IPMI |
ASPEED AST2500 |
|
Graphics |
ASPEED AST2500 BMC |
|
Network Controllers |
Dual LAN with 1GbE LAN with Intel® X722 |
|
Input / Output |
|
|
SATA |
14 SATA3 (6Gbps) port(s) |
|
LAN |
2 RJ45 Gigabit Ethernet LAN ports |
|
USB |
4 USB 2.0 port(s) (2 rear; 2 via header) 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A) 2 USB 3.0 port(s) (2 rear) |
|
Video Output |
1 VGA port(s) |
|
Serial Port |
2 COM Port(s) (1 header; 1 rear) |
|
DOM |
2 SuperDOM (Disk on Module) ports |
|
TPM |
TPM Header |
|
Expansion Slots |
|
|
PCI-E |
4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 |
|
M.2 |
M.2 Interface: PCI-E 3.0 x4 Form Factor: 22110, 2280, 2260 Key: M-Key |
|
System BIOS |
|
|
BIOS Type |
AMI UEFI |
|
Management |
|
|
Software |
SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog |
|
PC Health Monitoring |
|
|
Voltage |
Monitors CPU voltages, 3.3V standby, +5V standby, +5V, +3.3V, +12V |
|
LED |
UID/Remote UID Power LED BMC/IPMI Heartbeat LED CPU / System Overheat LED |
|
Temperature |
Monitoring for CPU and chassis environment CPU thermal trip support PECI |
|
FAN |
8x 4-pin fan headers (up to 8 fans) PWM fan speed control |
|
Other Features |
UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC, NCSI header |
|
Operating Environment |
|
|
Operating Temperature Range |
10°C - 35°C (50°F - 95°F) |
|
Non-Operating Temperature Range |
-40°C - 70°C (-40°F - 158°F) |
|
Operating Relative Humidity Range |
8% - 90% (non-condensing) |
|
Non Operating Relative Humidity Range |
5% - 95% (non-condensing) |
