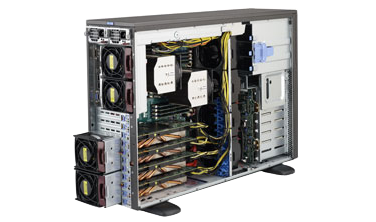

Supermicro 7049GP-TRT
1. Dual Socket P (LGA 3647) support；2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
2. 16 DIMMs; up to 4TB 3DS ECC；DDR4-2933MHz RDIMM/LRDIMM,Supports Intel® Optane™ DCPMM
3. 4 PCI-E 3.0 x16 (double-width) slots, 2 PCI-E 3.0 x16 (single-width) slots,1 PCI-E 3.0 x4 (in x8) slot
4. 8 Hot-swap 3.5" drive bays
5. 2x 10GBase-T LAN ports
6. 1 VGA, 2 COM, 5 USB 3.0
7. 2200W Redundant Power Supplies，Titanium Level (96%)
8. GPU Kit for passive GPU support (MCP-320-74702-0N-KIT)
Heterogeneous Acceleration
The Supermicro 7049GP-TRT supports 2 Intel® Xeon® Platinum/Gold/Silver/Bronze scalable processors and 4 NVIDIA Turing architecture GPU accelerators with CUDA cores, Tensor cores, RT cores, and other features that can improve processing speed by dozens of times compared to CPUs.
Stable and Reliable
The unique GPU cooling design ensures effective heat dissipation without reducing frequency of use. The power module adopts a 2200W platinum-grade power supply with 1+1 redundancy design, allowing the system to continue working without interruption in case of power module failure.
Environment Support
Purchasing the complete machine can assist with the installation of deep learning SDKs (CUDA, cuDNN, NCCL) and deep learning frameworks, including Caffe, TensorFlow, PyTorch, MXNet, and all necessary driver programs. This can shorten software deployment cycles and improve work efficiency.
Application Scenarios
Suitable for compute-intensive applications such as HPC, deep learning, GPU virtualization, graphics rendering, scientific computing, artificial intelligence, and oil and gas exploration.
|
Product SKUs |
|
|
SYS-7049GP-TRT |
SuperServer 7049GP-TRT (Black) |
|
Processor |
|
|
CPU |
Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡；3 UPI up to 10.4GT/s Support CPU TDP 70-205W |
|
Cores |
Up to 28 Cores |
|
Note |
BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
|
GPU Support |
Please refer to: |
|
System Memory |
|
|
Memory Capacity |
16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† |
|
Memory Type |
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
|
Note |
† 2933MHz in two DIMMs per channel
can be achieved by using memory purchased from Supermicro |
|
On-Board Devices |
|
|
Chipset |
Intel® C621 chipset |
|
SATA |
SATA3 (6Gbps) RAID 0, 1, 5, 10 |
|
Network Controllers |
Intel® X550 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
|
IPMI |
Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
|
Graphics |
ASPEED AST2500 BMC |
|
Input / Output |
|
|
SATA |
10 SATA3 (6Gbps) ports |
|
LAN |
2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port |
|
USB |
5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) 4 USB 2.0 ports (2 rear, 2 via headers) |
|
Video |
1 VGA port |
|
Serial Port / Header |
2 COM ports (1 rear, 1 Header) |
|
System BIOS |
|
|
BIOS Type |
AMI 32Mb SPI Flash ROM |
|
Management |
|
|
Software |
Intel®Node Manager；IPMI 2.0； SSM , SPM ,SUM； SuperDoctor®5 |
|
PC Health Monitoring |
|
|
CPU |
Monitors for CPU Cores, Chipset Voltages, Memory； 4+1 Phase-switching voltage regulator |
|
FAN |
Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
|
Temperature |
Monitoring for CPU and chassis environment； Thermal Control for fan connectors |
|
Dimensions and Weight |
|
|
Height |
18.2" (462mm) |
|
Width |
17.2" (437mm) |
|
Depth |
26.5" (673mm) |
|
Package |
27" (H) x 13" (W) x 38" (D) |
|
Weight |
Net Weight: 46 lbs (20.9 kg) Gross Weight: 62 lbs (28.1 kg) |
|
Available Colors |
Dark Gray |
|
Front Panel |
|
|
Buttons |
Power On/Off button System Reset button |
|
LEDs |
Power LED Hard drive activity LED Network activity LEDs System Overheat & Power Fail LED |
|
Expansion Slots |
|
|
PCI-Express |
4 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x16 (single-width) slots 1 PCI-E 3.0 x4 (in x8 slot) |
|
Drive Bays / Storage |
|
|
Hot-swap |
8 Hot-swap 3.5" drive bays Optional 4x 2.5" NVMe supported |
|
M.2 |
1 NVMe based M.2 SSD Form Factors: 2280, 22110 |
|
System Cooling |
|
|
Fans |
4 Heavy duty fans；2 Rear exhaust fans；2 Optional Rear fans (required for Passive GPUs) |
|
Heatsink |
2 Active heatsink with optimal fan speed control |
|
Power Supply |
|
|
2000W Redundant Power Supplies with PMBus |
|
|
Total Output Power |
1200W with Input 100-127Vac 1800W with Input 200-220Vac 1980W with Input 220-230Vac 2090W with Input 230-240Vac 2200W with Input 220-240Vac (for UL/cUL use only) 2090W with Input 230-240Vdc (for CCC only) |
|
AC InputFrequency |
50-60Hz |
|
Dimension (W x H x L) |
76 x 40 x 336 mm |
|
Operating Environment |
|
|
RoHS |
RoHS Compliant |
|
Environmental Spec. |
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non condensing) Non-operating Relative Humidity:5% to 95% (non-condensing) |
