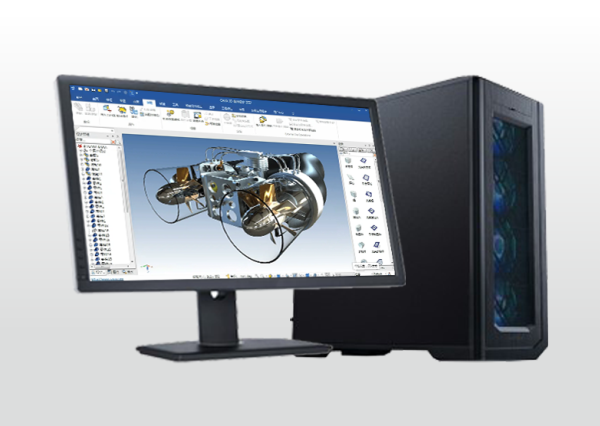

Jinpin KD 7100-X1 GPU Workstatio
This is a tower-style high-performance consumer-grade GPU workstation that features 11th Gen Intel Core processors and can support one double-width GPU card, providing powerful professional-level computing capabilities. It integrates four DDR4 memory slots with a capacity of up to 128GB, and is able to easily handle entry-level computing needs. It also features multiple I/O interfaces for flexible expansion.
Product Features:
Powerful Performance:
• The KD7100-X1 is built on the 11th Gen Intel Core processor platform with 8 cores and 16 threads, and supports up to 125W TDP CPUs.
• It can identify the processor's fastest core and assign the most critical workloads to it, improving single-threaded performance by over 15% to provide high processing performance for the workstation.
• It supports 4 3200 MHz DDR4 memory slots, providing excellent speed, high availability, and up to 128GB of memory capacity.
Flexible Expansion:
• It can support up to 4 3.5/2.5 inch SATA/SAS non-hot-swappable hard drives and one M.2 hard drive.
• It supports 4 standard PCIe 3.0 expansion slots that can be used to further enhance I/O performance. It also supports PCIe expansion cards such as graphics cards and network cards.
• It supports both HDMI and DP display outputs, perfectly adapting to various high-speed peripherals.
Application Scenarios:
• It can be flexibly configured according to customers' actual application needs to meet their changing application requirements.
• It can be used for graphic design software such as Autodesk Maya, 3ds Max, CAD, Solidworks, and C4D.
|
Component |
Description |
|
Specification |
Tower |
|
Processor |
Supports 1 Intel Core 11th generation series processor Supports up to 8 cores Supports frequency up to 5.3 GHz Power consumption 125W |
|
Chipset |
Intel Z590 |
|
Memory |
Supports 4 DDR4 3200 MHz memory slots Supports ECC DDR4 Non-ECC, Un-buffered Single memory module supports up to 32GB |
|
GPU |
1 GPU |
|
Storage |
Supports 4 x 3.5/2.5 inch non-hot-swappable hard drives and 1 x M.2 hard drive |
|
Network |
1 x 2.5Gb Ethernet |
|
I/O expansion slots |
1 × PCIe 4.0 x16 1 × PCIe 3.0×16 2 × PCIe 3.0x1 |
|
Ports |
Front: 1 x USB 3.0, 2 x USB 2.0, 1 x audio interface Rear: 2 x USB 2.0, 1 x SP2 interface, 1 x HDMI, 1 x DP, 1 x USB 3.2, 1 x USB 3.2 Type-C, 2 x USB 3.2, 1 x 2.5Gb Ethernet interface, 1 x audio interface |
|
Optical drive |
Supports SATA interface DVD-RW |
|
Fans |
Front fans x 3, rear fan x 1, top fans x 3, bottom fan x 1 |
|
Power supply |
850W/1000W tower power supply |
|
Operating system |
Windows 10 |
|
Size |
D 560mm；W 240mm；H 580mm |
|
Weight |
Approximately 10kg |
|
Operating temperature |
0°C - 50°C (32°F - 122°F) |
