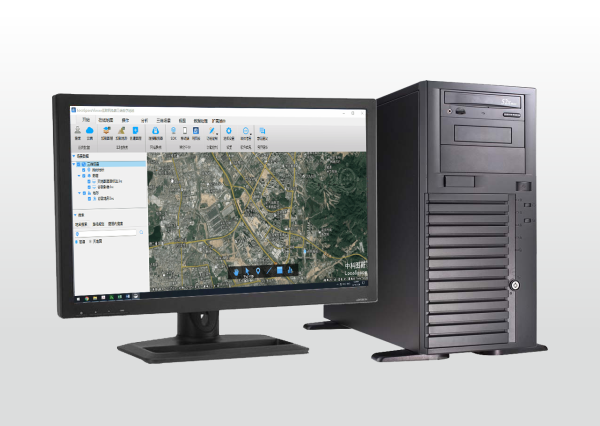

Jinpin KD 7104-V3 Graphics Workstation

Jinpin KD 7104-V3 Graphics Workstation is a tower workstation based on the high-performance Intel W-series processors. It meets the diverse application needs of different customers and easily handles demanding applications. Equipped with a GPU card, it provides excellent task processing capabilities, easily copes with computationally intensive workloads, and assists in landing various professional AI applications.

It is suitable for applications such as physical and biochemical simulations, climate and weather modeling, satellite imaging, data analysis, face recognition, audio and video, and online games.


Powerful performance

KD7104-V3 is based on the Intel Xeon W-3300 series processor, with 38 cores and 76 threads, and can support TDP 270W.

It supports 16 3200 MHz DDR4 memory slots, and the memory supports 3DS ECC LRDIMM type, providing excellent speed and supporting up to 4TB of memory capacity.

Flexible expansion

It can support 4 3.5/2.5 inch SATA/SAS non-hot-swappable hard drives.

It can support 7 standard PCIe 3.0 expansions, which can be used to further improve I/O performance. It supports PCIe expansion cards such as graphics cards and network cards.

It also supports HDMI and DP display output, perfectly adapting to various high-speed peripherals.

Smart management

It provides an independent management network port for remote management and monitoring of the server.

It has intelligent fan adjustment design, which can adjust the fan speed according to different application scenarios.

It is particularly suitable for centralized management of large enterprise-level distributed server deployments.







Supports 1 Intel Xeon W-3300 series processor

Supports 38 cores

Supports frequency up to 4.0GHz

Power consumption of 270W


Intel C621A


Supports 16 DDR4 3200MHz memory modules

Supports ECC DDR4 LRDIMM(3DS) and RDIMM(3DS)

Each memory module supports up to 4TB


Equipped with 1 GPU card


Built-in: Supports 4 non-hot-swappable 3.5/2.5-inch SATA/SAS hard drives


Integrated dual RJ45 network interface on the motherboard

I/O Expansion Slots

4 x PCIe 4.0 x16

3 x PCIe 3.0 x8 (in x16 slots)


Front: 2 x USB2.0

Rear: 2 x USB2.0, 1 x USB3.1 Type C, 1 x COM, 1 x VGA, 1 x IPMI, 1 x 1Gb RJ45 network port, 1 x 10Gb RJ45 network port, 4 x USB3.2, a set of audio interfaces

Optical drive

Supports SATA interface DVD-RW


1 front fan and 1 rear fan

Power supply

850W/1000W tower power supply

Operating system

Windows 10/Server2019RedHat 6.10/7.7/8.1

Ubuntu 18.04.3LTS/19.04/19.10SuSE Leap 15.1

XenServer 8.1SuSE SLES 12 SP4/15 SP1Vmware ESXi 6.7U3


Depth: 465mm; Width: 198mm; Height: 425mm


Approximately 25KG

Operating temperature

0℃– 50℃ (32°F - 122°F)
