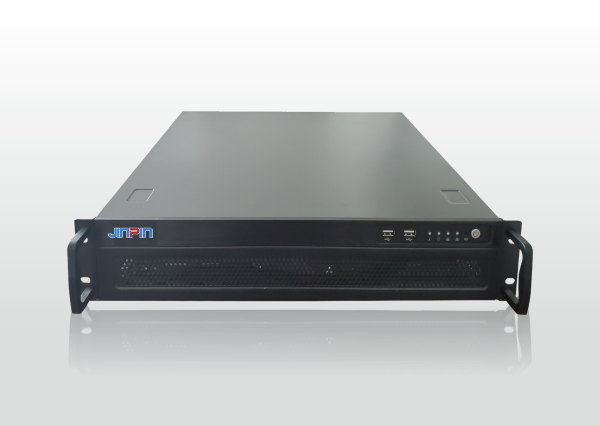

Jinpin 2104-SE Edge Computing Server
The KU2104-SE is an edge computing server based on INTEL processors and LINUX system, with stable and reliable performance. The product supports NVIDIA GPU accelerator and platinum-level redundant power supply, with high performance, adaptability, and reliability, making it suitable for edge data centers requiring strong processing capabilities in video processing, intelligent inspection, face recognition, and smart communities.
Video processing high performance:
Supports Intel® Xeon® E3-1200V5/V6 and Core™ i3/i5/i7 series processors, and with the help of NVIDIA GPU accelerators, it can process 800+ video images per second, supporting GPU computing to further improve computing speed in a small space.
Wide adaptability:
Designed with a 490mm body, it has wider environmental adaptability and is easy to deploy at the edge; it also supports Intel® Xeon/Core™ 6th, 7th, 8th, and 9th generation processors, with richer configurations and characteristics such as high-temperature resistance and dust prevention.
Easy management:
With the BMC management module, it provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and OS deployment management functions to achieve convenient system management and reduce operation and maintenance costs.
Application scenarios:
Suitable for video processing, smart inspection, face recognition, smart communities, and edge computing rooms with high processing requirements.
|
Components: |
Description: |
|
Specification: |
89 x 490 x 437mm(H x W x D) |
|
Processor: |
Intel® Xeon® E3-1200v5/v6, Core™ i3/i5/i7 series processors |
|
Memory: |
4 DIMM expansion slots, supports up to 64GB DDR4 DIMM 2666 memory |
|
Hard Drive: |
2 SATA 3.5 inch hard drives |
|
Chipset: |
Intel® C236 |
|
Display: |
Aspeed AST2400 |
|
External Interfaces: |
4 USB 2.0 ports, 4 USB 3.0 ports, 1 HDMI port; 1 DP port, 1 DVI port, 1 VGA port, 2 network interfaces; 1 central/LFE output interface, 1 surround output interface, 1 digital output interface; 1 line input interface, 1 line output interface, 1 microphone input interface; |
|
Onboard Interfaces: |
8 SATA3 (6 GBPS), 1 PCI-E M.2 interface |
|
Buttons: |
1 power button, 1 system reset button |
|
Power Supply: |
Platinum level 550W 1+1 redundant power supply |
|
Operating System: |
Microsoft Windows Server、Red Hat Enterprise Linux； SUSE Linux Enterprise Server、CentOS、Ubuntu； |
|
Operating Temperature: |
0℃～ 40℃ |
|
Operating Humidity: |
8%-90％relative humidity |
