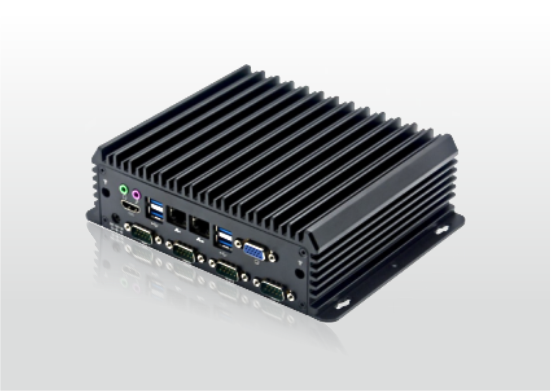

Jinpin E100 Industrial Edge Computer
E100
is a high-performance industrial computer with wide temperature and voltage
range and internal wireless connectivity, featuring low-power processors and
full support for Intel i3/i5/i7 processors.
It
has rich I/O interfaces and is widely used in industrial production lines,
machinery and equipment, testing equipment, commercial cash registers, and
other scenarios.
• Intel® Core i5-6360U series processor;
• Supports I3/i5/i7 CPU and multiple configurations;
• Supports 2 RS232/485 COM ports;
• Equipped with 6 Intel® i211AT Gigabit Ethernet ports, supports EtherCAT;
• Made of all-aluminum alloy material for a high-end look;
• Fully sealed with wireless cables for dust-proof, shock-proof, and anti-interference capabilities.
|
Components |
Description |
|
Size |
57 x 148 x 174 mm (Height x Width x Depth) |
|
Processor |
Intel® Core™ i5-6360U processor |
|
CPU architecture |
Intel SkyLake/kaby Lake |
|
Memory |
Supports 2 DDR4 SO-DIMM slots Supports up to 16GB memory |
|
Storage |
1 mSATA, 1 SATA 2.5-inch hard drive |
|
Graphics chip |
Integrated Intel HD Graphics 620 |
|
Network |
Intel® i211, 6 Gigabit Ethernet ports |
|
GPIO |
8 GPIO ports (4 input, 4 output) |
|
WIFI |
Supports (optional) |
|
Expansion slot |
Mini PCIe x1, supports 3G/4G modules, supports WIFI Bluetooth module |
|

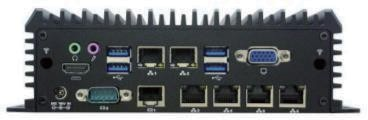

Other interfaces |
2 USB2.0, 4 USB3.0, 2 COM, VGA, HDMI |
|
Power supply |
12V DC input |
|
Operating system |
Windows7/8/10/server 2019/Linux |
|
Operating temperature |
-10℃～ +50℃ |
|
Operating humidity |
0%-95％relative humidity |
|
Weight |
2.05 KG |
