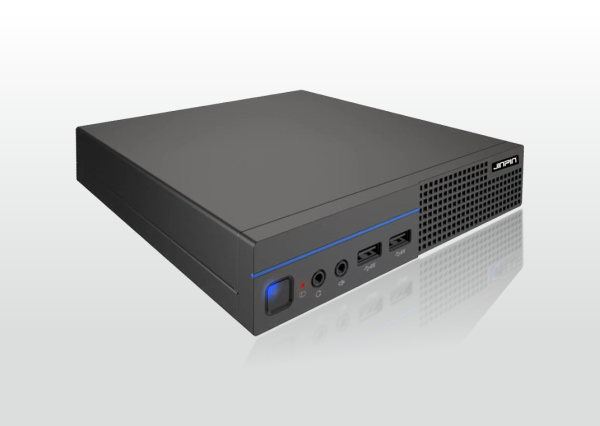

Jinpin E500 Chinese made Edge Server
E500 is a
cloud terminal product based on Phyitum desktop processor and Galaxy Kylin
operating system. It is equipped with a high-performance Phyitum new generation
8-core D2000 processor and is compatible with Galaxy Kylin and UOS desktop
operating systems to meet various information security computing requirements
and easily adapt to various business office environments.
Independent
and Controllable
It uses
domestic processors, firmware, and operating systems, and is equipped with
domestic office software to meet the service requirements of high information
security and independence in core areas.
High
Availability
The whole
machine has a stylish and compact appearance, which is especially suitable for
places with limited office space. It is equipped with HDMI dual high-definition
display interfaces and standard interfaces such as USB 2.0, USB3.0, and dual
gigabit networks for high-speed connectivity.
High
Performance
Based on
the Phyitum D2000 processor with 8 Phyitum self-developed processor cores, it
has more advanced architecture design and microstructure implementation, higher
main frequency, lower power consumption, and more secure and trustworthy
characteristics. It supports 2 DDR4 SODIMM memories with a working frequency of
up to 2666MHz, and uses an independent graphics card to support dual
high-definition display.
|
Components |
Description |
|
Specification |
36.3 x 201 x 182mm (H x W x D) |
|
Processor |
Tengrui D2000/8 processor, 2.3GHz |
|
Memory |
Supports dual-channel DDR4 SODIMM memory slots, up to 32GB |
|
Graphics Card |
MXM discrete graphics card with 1GB VRAM |
|
Network |
Integrated dual gigabit Ethernet |
|
Storage |
Supports 1 SATA3.0 interface, 1 M.2 NVME interface, 1 MSATA interface |
|
Rear Panel I/O |
4 USB3.0, 1 DP, 1 HDMI, 1 power port |
|
Front Panel I/O |
2 USB3.0, 1 audio interface, power button |
|
Firmware |
Galaxy Kylin desktop version/UOS desktop version |
|
Operating System |
Made in China, security and controllable |
|
Power Supply |
External adapter DC19V, 90W |
|
Operating Temperature |
0℃～ 40℃ |
|
Operating Humidity |
8%-90％relative humidity |
