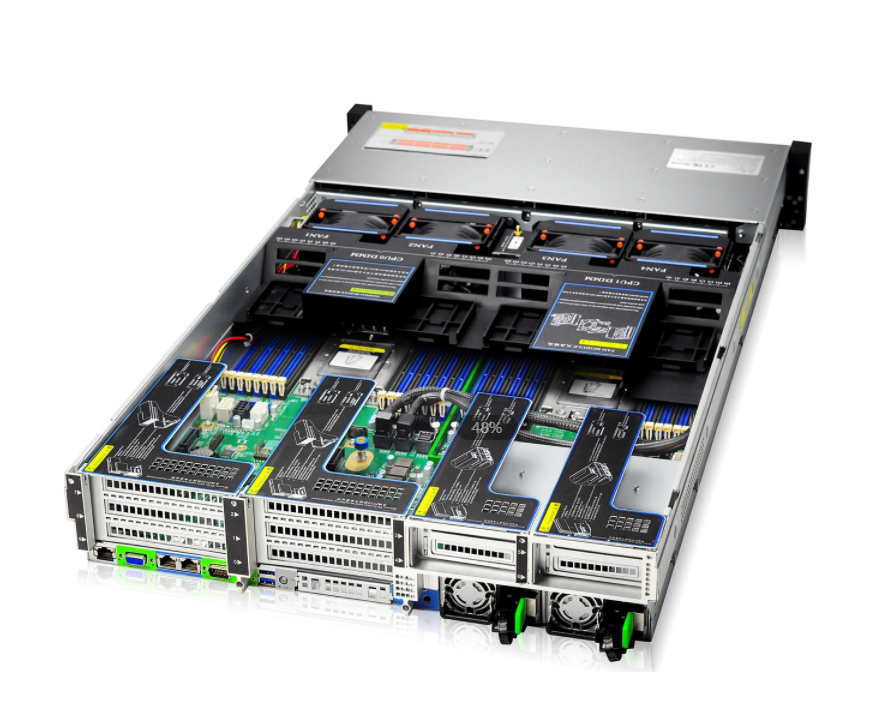

Jinpin KG2204-V2 AI Server
Jinpin KG2204-V2 is a inference computing server based on the first/second generation Intel® Xeon® Scalable processors:
● 2U Chasssis with support for 4 half-height NVIDIA GPU inference cards (passive cooling);
● Can support up to 2 first/second generation processors;
● 4TB DDR4 ECC RDIMM memory;
● Rack-mountable design with independent air ducts for effective heat dissipation and reduced system noise.
Suitable for high-performance computing applications such as deep learning training, inference, video analysis, big data, and virtual computing.
Leading Architecture
● Supports 4 PCIe form factor expansion cards in 2U form factor, with support for NVIDIA Tesla professional cards;
● Supports NVIDIA NVLINK interconnect technology to enhance memory and performance scalability;
● Supports new 100Gb network cards to improve data transmission efficiency.
Excellent Performance
● Two first/second-generation Intel® Xeon® Scalable processors with TDP of 205W;
● 16 DDR4 ECC RDIMM memory slots, supporting up to 4TB memory; ● Native M.2 interface on the motherboard for high-performance computing.
Flexible Configuration

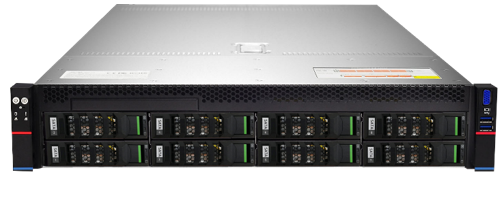

● Supports 8 front 3.5/2.5" + 2 rear 2.5" hard drives, with support for RAID data protection;
● Supports 1+1 redundant power supplies or single power supply to effectively reduce cost;
● Flexible adaptation to the latest AI acceleration cards and intelligent network cards from various brands.
Ready to Use Out of the Box
● Pre-installed with Ubuntu operating system and deep learning SDK;
● Deep learning frameworks include TensorFlow, PyTorch, etc.;
● Delivered in container form, shortening the software deployment cycle that could otherwise take days, enabling immediate use and improving work efficiency.
|
Components: |
Description: |
|
Specification: |
2U rack-mounted; |
|
Size |
87.6 x 433 x 695mm(height x width x depth) |
|
Processor |
2 Intel® Xeon® Skylake/Cascade Lake series processors; up to 205W |
|
Chipset: |
Intel® C621 |
|
Memory |
Supports 24 DDR4 ECC RDIMM/LRDIMM memory Supports frequencies of 1866/2133/2400/2666/2933MHz Supports up to 3TB memory |
|
Storage |
Supports 8 3.5"/2.5" SAS/SATA3.0 hard drives 2 built-in 2.5" hard drives Supports 2 x M.2 hard drives |
|
GPU |
4 single-width GPU cards |
|
PCIE expansion |
10 PCIe expansion slots 1 OCP 3.0 expansion slot |
|
Display: |
AST2500 |
|
Management: |
IPMI 2.0 |
|
Other interfaces: |
1 X COM、4 X USB 3.0 |
|
Power supply: |
800W platinum 1+1 redundant |
|
Operating system |
Windows Server、Centos/Redhat Suse、Ubuntu 、 Vmware ESXI、Xen Server |
|
Operating environment: |
Temperature: Operating: 10°C to 35°C, Humidity: Operating: 10% to 90% |
