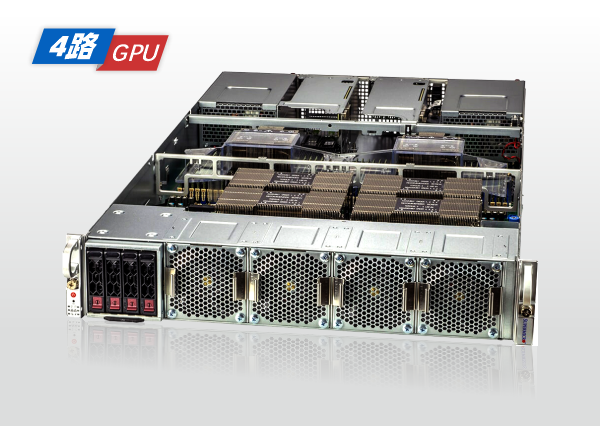

Jinpin KG2204-V3 AI Server
KG2204-V3 is an artificial intelligence server based on the 3rd Gen Intel® Xeon® Scalable processor.
● Supports up to 4 NVIDIA GPU acceleration cards (passive cooling) in a 2U space;
● Supports dual Intel® Scalable processors;
● 8TB DDR4 ECC RDIMM memory;
● Supports rack-mounted installation;
● Adopts independent air duct design to ensure heat dissipation effect and reduce system noise.
Suitable for high-performance computing applications such as artificial intelligence, deep learning training, inference, virtualization, etc.
Leading architecture
Supports up to 4 PCIe expansion cards in a 2U space, supporting NVIDIA HGX A100 professional cards;
Supports NVIDIA NVLINK interconnect technology, which can improve graphics memory and performance extension;
Supports new 100Gb network cards to improve data transfer efficiency.
Outstanding performance
Two 2nd Gen Intel® Xeon® Scalable processors with a TDP of 270W;
32 DDR4 ECC RDIMM/LRDIMM memory slots, supporting up to 8TB memory;
Intel Optane data center persistent memory, improving computing efficiency.
Flexible configuration
Supports up to 4 2.5" NVMe/SATA/SAS hot-swappable hard drives with RAID data protection;
2 3000W redundant power supplies to prevent data loss caused by power failure;
Flexible adaptation to various brands of intelligent network cards.
Ready to use
Pre-installed Ubuntu operating system, deep learning SDK;
Deep learning frameworks including TensorFlow, PyTorch, etc.;
Delivered in container form, shortening the software deployment cycle by several days, achieving plug-and-play, and improving work efficiency.
|
Component |
Description |
|
Specification |
2U Rackmount |
|
Size |
89 x 437 x 830mm(H x W x D) |
|
Processor |
2 x Intel® Xeon® Ice Lake series processors; up to 270W |
|
Memory |
Supports 32 x DDR4 ECC RDIMM expansion slots Supports frequencies of 2666/2933/3200MHz Supports up to 8TB of memory |
|
Storage |
2 x M.2 NVMe or 2 x M.2 SATA3 4 x 2.5" NVMe/SATA/SAS hot-swappable hard drives |
|
Network Interface |
Intel® X540-AT2 Dual 10Gbps Ethernet |
|
GPU |
4 x Nvidia A100 SXM4 GPUs |
|
PCIe Expansion |
Supports 4 x PCIe 4.0 x16 expansion slots |
|
Display |
AST2500 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
2 x USB 3.0 |
|
Power Supply |
Titanium 3000W 1+1 Redundant |
|
Operating System |
Windows、ubuntu 、Centos、SUSE、Vmware |
|
Operating Environment |
Operating temperature: 10℃～35℃, Operating humidity: 8%～90% |
