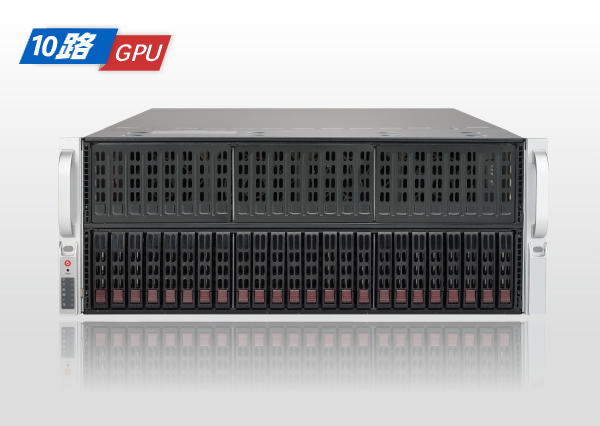

Jinpin KG4210-V2 AI Server
Jinpin KG4210-V2 is an artificial intelligence server based on the second-generation Intel® Xeon® Scalable processor, featuring:
● Support for up to 10 NVIDIA GPU acceleration cards (actively cooled)
● Dual Intel® Scalable processors
● 4TB DDR4 ECC RDIMM/LRDIMM memory
● Rack-mountable design
● Independent air duct design for efficient cooling and reduced system noise
Suitable for artificial intelligence, deep learning training, video decoding, big data analysis, and other applications.
Leading architecture
Independent GPU compartment design with a dedicated GPU cooling air duct to ensure stable GPU operation
Support for NVIDIA NVLINK interconnect technology for improved memory and performance scalability
Support for new 100Gb network card for improved data transfer efficiency
Outstanding performance
Dual second-generation Intel® Xeon® Scalable processors with a TDP of 185W
16 DDR4 ECC RDIMM/LRDIMM memory slots supporting up to 4TB of memory
Intel Optane persistent memory to improve computational efficiency
Flexible configuration
Front: 4 hot-swappable 3.5" hard drives; rear: up to 4 hot-swappable 3.5" hard drives, supporting RAID data protection; up to 4 hot-swappable 2.5" hard drives in the rear
3+1 redundant power supplies to prevent data loss caused by power outages
Ready-to-use
Pre-installed with Ubuntu operating system, deep learning SDK
Deep learning frameworks such as TensorFlow and PyTorch
|
Component |
Description |
|
Specification |
4U Rackmount |
|
Size |
790x433x176.5mm (Depth x Width x Height) |
|
Processor |
Dual 2nd Gen Intel® Xeon® Scalable processors, TDP 205W |
|
Memory |
Supports 24 DDR4 ECC RDIMM/LRDIMM memory slots Supports frequency of 1866/2133/2400/2666/2933MHz Supports up to 6TB memory |
|
Storage |
Supports 24 hot-swappable 2.5-inch SAS/SATA3 hard drives Supports 1 M.2 slot |
|
Network Interface |
Intel@ C622 10 Gigabit Ethernet |
|
GPU |
Supports 10 double-width GPU cards |
|
PCIE Expansion |
Up to 12 PCIe 3.0 standard expansion slots 11 PCIe 3.0 x16 expansion slots 1 PCIe 3.0 x8 expansion slot |
|
Display |
AST2500 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、6 x USB 3.0、1 x COM Interfaces |
|
Power Supply |
Titanium-level 2000W 1+1 redundant |
|
Operating System |
Windows、ubuntu 、Centos、SUSE、Vmware |
|
Operating Environment |
Operating temperature: 10℃ to 35℃; Operating humidity: 8% to 90%. |
