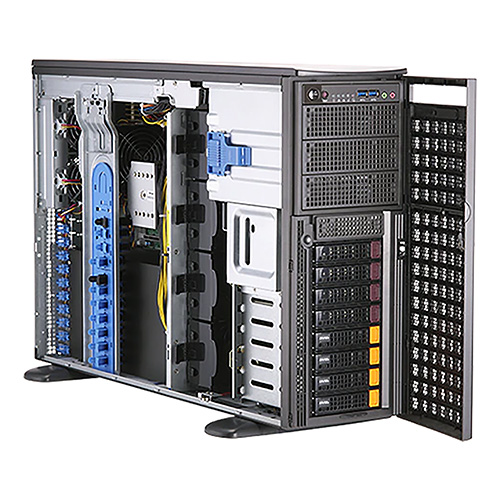

Jinpin KG4204-V3 AI Server
The Jinpin KG4204-V3 is an artificial intelligence server developed based on the third-generation Intel® Xeon® Scalable processor. It can support four NVIDIA GPU accelerator cards (actively cooled), dual Intel® Scalable processors, up to 4TB DDR4 ECC RDIMM/LRDIMM memory, and can be installed in a tower or rack. It adopts an independent air duct design to ensure heat dissipation and reduce system noise. It is suitable for applications such as artificial intelligence, deep learning training, video decoding, and big data analysis.
Leading Architecture:
Adopt independent airflow design to ensure stable GPU operation;
Support NVIDIA NVLINK interconnect technology to improve memory and performance expansion;
Support new 100Gb network card to improve data transfer efficiency.
Outstanding Performance:
Two 3rd Gen Intel® Xeon® Scalable processors, TDP 270W;
16 DDR4 ECC RDIMM/LRDIMM memory slots, supports up to 6TB memory;
Intel Optane Data Center Persistent Memory to improve computing efficiency.
Flexible Configuration:
8 front-accessible 3.5" hot-swappable hard drives, supports up to 4 3.5" NVMe hot-swappable hard drives, supports RAID data protection;
1+1 redundant power supply to prevent data loss caused by power failure;
Optional 4 rear pull-outs to enhance GPU cooling.
Ready-to-Use:
Pre-installed Ubuntu operating system, deep learning SDK;
Deep learning frameworks including TensorFlow, PyTorch, etc.;
Delivered in container form, shortening the software deployment cycle that would take days, ready-to-use out of the box, and improving work efficiency.
|
Components: |
Description: |
|
Specifications: |
4U Rackmount |
|
Size |
176.5 x 433 x 695mm(H x W x D) |
|
Processor |
2 x Intel Xeon Ice Lake processors, up to 270W |
|
Memory |
16 DDR4 DIMM slots Memory Speed: 2666/2933/3200MHz Maximum Memory Capacity: up to 4TB |
|
Storage |
12 x hot-swappable 3.5"/2.5" SAS/SATA hard drives Optional 2 x 2.5" SAS/SATA/U.2 hot-swappable hard drives |
|
GPU |
Supports 4 double-width GPU cards |
|
PCIE Expansion |
10 个 PCIe slot |
|
Display |
AST2500 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、COM 、4 x USB3.0 |
|
Power Supply |
Platinum-level 1600W/2000W/2200W 1+1 redundant power supply |
|
Operating System |
Windows，ubuntu Centos，SUSE、Vmware |
|
Working Environment: |
Operating temperature: 10℃～35℃, Operating humidity: 8%～90%. |
