Jinpin KG4210-V3 AI Server
The KG4210-V3 is an AI server developed based on the third-generation Intel® Xeon® Scalable processor, featuring:
Support for 10 NVIDIA GPU acceleration cards (active heat dissipation)
Dual Intel® Scalable processors
4TB DDR4 ECC RDIMM/LRDIMM memory
Rack-mounted installation
Independent airflow design for effective heat dissipation and reduced system noise
This server is suitable for applications such as AI, deep learning training, video decoding, and big data analysis.
Special Price: 2000USD for basic configuration
Leading Architecture

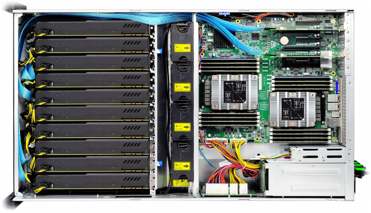

Adopt independent GPU compartment design with separate GPU cooling airflow channel to ensure stable operation of the GPU;
Support NVIDIA NVLINK interconnect technology to increase memory and performance expansion;
Support the latest 100Gb network card to improve data transmission efficiency.
Excellent Performance
Two 3rd Gen Intel® Xeon® Scalable processors, TDP 185W;
8 DDR4 ECC RDIMM/LRDIMM memory slots, supporting up to 2TB of memory;
Support up to 10 NVIDIA Tesla computing cards.
Flexible Configuration
4 front 3.5" hot-swappable hard drives and 4 rear 3.5" hot-swappable hard drives with support for RAID data protection;
3+1 redundant power supply to prevent data loss caused by power failure;
Optional 4 rear 2.5" hot-swappable hard drives.
Ready to Use
Pre-installed Ubuntu operating system and deep learning SDK;
Deep learning frameworks include TensorFlow, PyTorch, etc.;
Delivered in container form to shorten the software deployment cycle that would otherwise take days and enable immediate use, improving work efficiency.
|
Components |
Description |
|
Specifications |
4U Rackmount |
|
Size |
176.5 x 433 x 790mm (H x W x D) |
|
Processor |
2 x Intel@ Xeon@ Ice Lake series processors with a maximum TDP of 270W |
|
Memory |
Supports 16 DDR4 ECC RDIMM/LRDIMM memory slots Supports frequencies of 2666/2933/3200MHz Supports up to 4TB of memory |
|
Storage |
2 x M.2 4 x 3.5"/2.5" SAS/SATA3.0 hot-swappable hard drives |
|
Network Interface |
Intel@ i350 dual gigabit network |
|
GPU |
Supports 10 dual-width GPU cards |
|
PCIe Expansion |
Supports 14 PCIe 4.0 x16 expansion slots Supports 6 PCIe 4.0 x8 expansion slots |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
4 x USB 3.0，VGA、COM |
|
Power Supply |
Supports 3+1 redundant power supply units (1200W / 1300W / 1600W / 2200W) |
|
Operating System |
Windows，ubuntu Centos，SUSE、Vmware For detailed version information, please consult technical support. |
|
Operating Environment |
Operating temperature: 10℃ to 35℃, operating humidity: 8% to 90%. |
