Jinpin KG4212-V3 AI Server

The Jinpin KG4212-V3 AI server is a Whitley 4U dual-socket standard server that supports 1/2 third-generation Intel® Xeon® scalable processors. It features 16 DIMM DDR4 memory slots, an integrated M.2 interface, 2 Gigabit Ethernet ports, 1 RJ45 management network port, and 10 PCIe expansion slots. It supports up to 5 high-performance GPU cards with full height and double width, meeting high-computing requirements. This server is suitable for artificial intelligence, virtualization, cloud computing, big data processing, distributed storage, enterprise markets, or telecommunications business applications.

Features

Leading Architecture

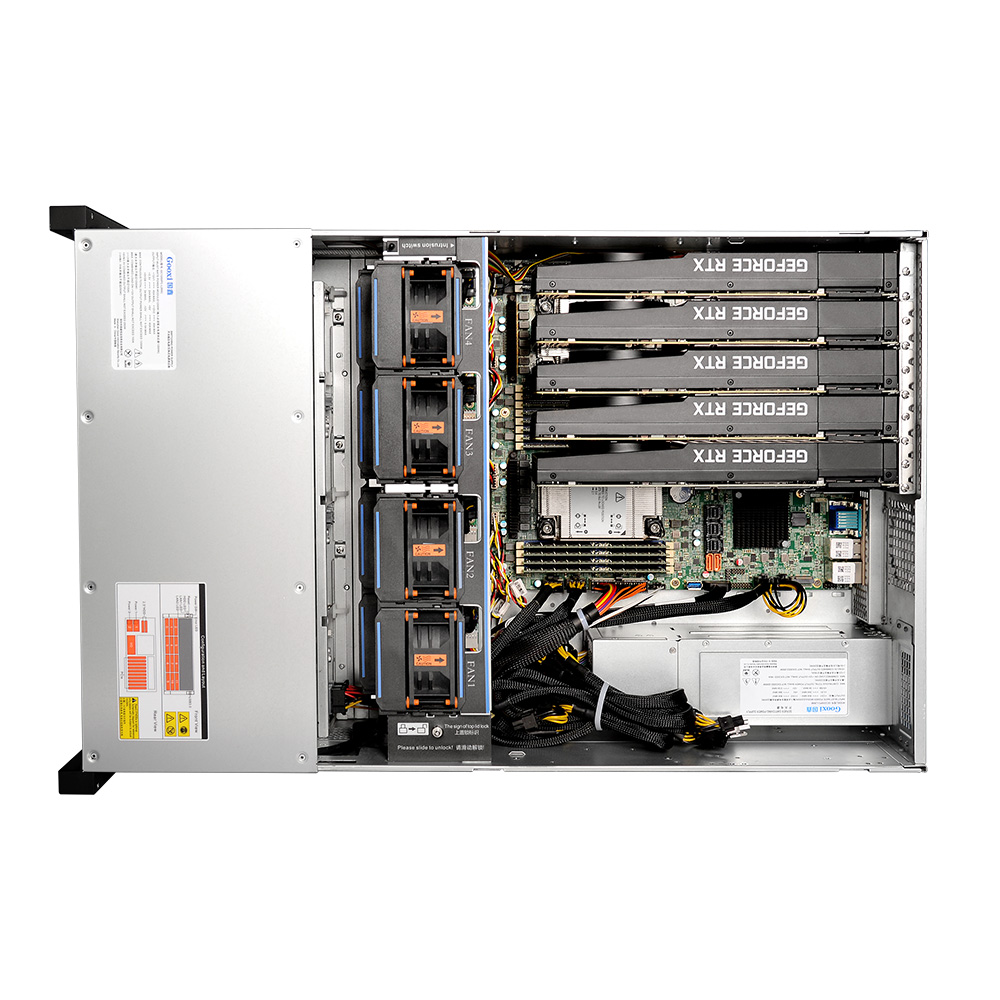

Adopts independent air duct design to ensure stable operation of GPU;

Supports NVIDIA NVLINK interconnect technology, which can improve memory and performance expansion;

Supports the latest 100Gb network card to improve data transmission efficiency.

Excellent Performance

Two 3rd generation Intel® Xeon® scalable processors, TDP 270W;

16 3200MHz LRDIMM/RDIMM memory slots;

Intel Optane DC Persistent Memory can improve computing efficiency.

Flexible Configuration

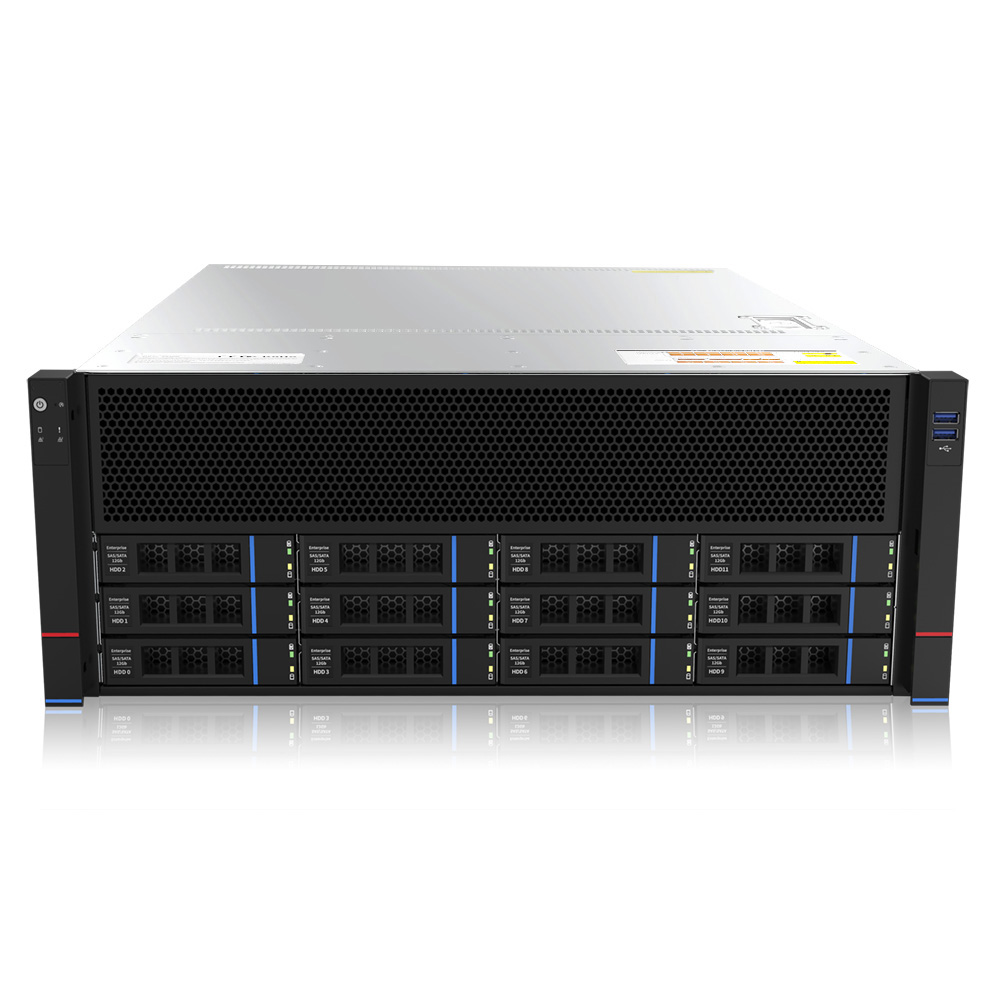

12 hot-swappable 3.5/2.5" SAS/SATA3.0 hard drives in the front;

Optional rear module supporting 1x2.5" hard drive;

1+1 redundant power supply to prevent data loss caused by power failure;

Optional up to 4 rear PCIe expansion slots to enhance GPU cooling.

Wide Range of Applications

Suitable for artificial intelligence, virtualization, cloud computing;

Big data processing, distributed storage;

Enterprise market or telecom business applications and other needs.

Specifications

Component	Description
Specification	4U Rackmount Server
Size	695433176.5mm(DWH）
Processor	2x 3rd Gen Intel® Xeon® Scalable processors, up to 205W
Memory	16 DDR4 memory slots Supports DDR4 2666/2933/3200MHz LRDIMM/RDIMM memory
Storage	Front: Supports 12 hot-swappable 3.5"/2.5" SAS/SATA hard drives Rear: Optional support for 2 2.5" SAS/SATA or U.2 hard drive bays
Storage Controller	RAID card controller, SAS card controller, supports RAID 0, 1, 5, 10
Management	On-board RJ45 interface, dedicated for IPMI remote management
PCIe Expansion	10 PCIe slots, supports 6 PCIe 3.0x8 (in PCIe 3.0 x16 slot), 1 PCIe 3.0x16, and 3 PCIe 4.0x16; Optionally supports 4 PCIe 3.0x8 (in PCIe 3.0 x16 slot), 2 PCIe 3.0x16, and 3 PCIe 4.0x16 Supports 4 full-height double-width high-performance GPU cards

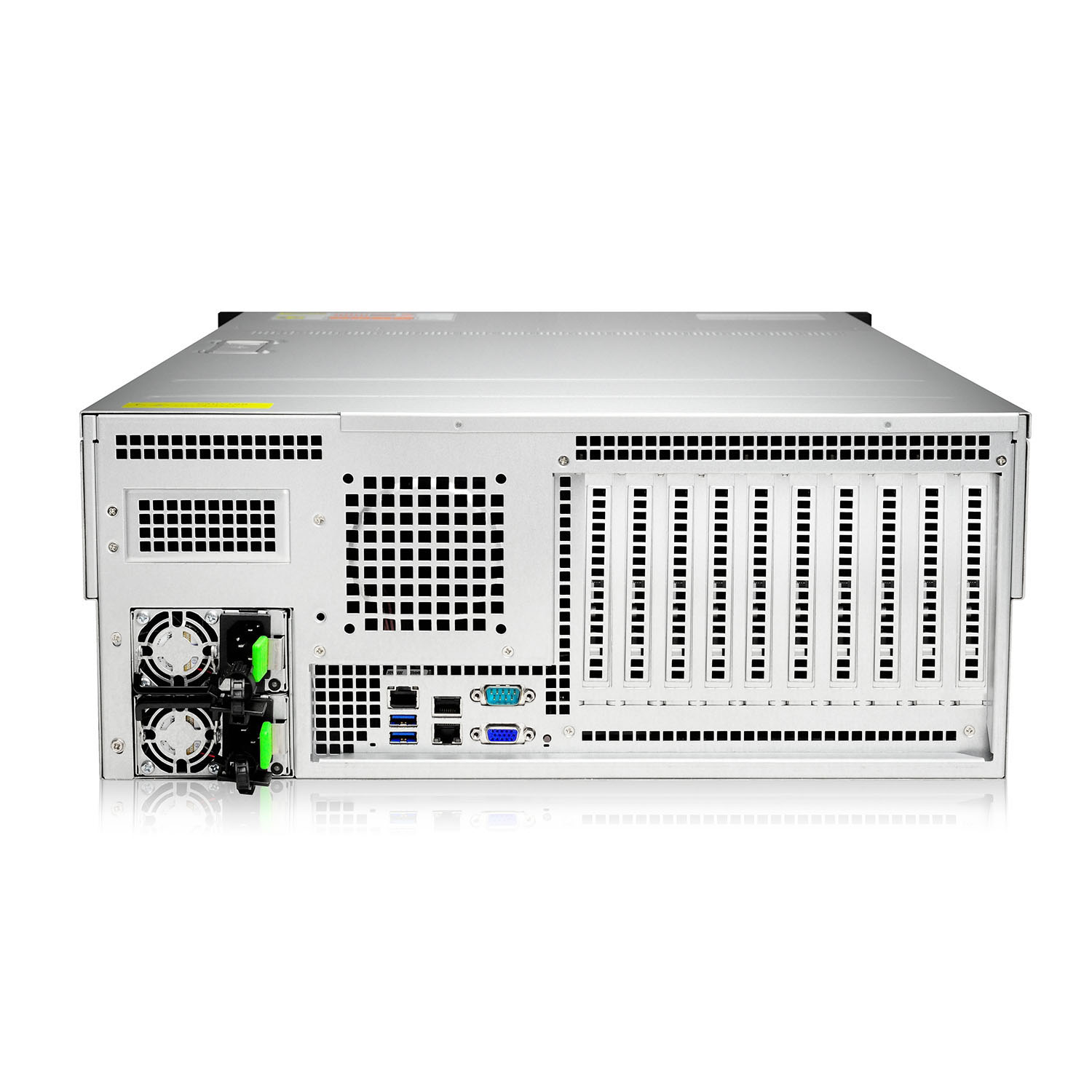

I/O Ports	Front: 2 USB 3.0 ports Rear: 1 VGA, 1 COM port, 2 USB 3.0 ports, 1 management port, 2 RJ45 ports
Power Supply	Supports AC 220V 1600W, 2000W, 2200W hot-swappable redundant power supplies (adapted according to actual power)
Operating System	Windows，ubuntu ，Centos，SUSE、VMware
Operating Environment	Temperature: Operating: 10℃～35℃; Non-operating: -40℃～60℃ Humidity: Operating: 8%～90%; Non-operating: 5%～95% (non-condensing)
