KU 4124-FT domestic Phytium server
KU 4124-FT domestic Phytium server

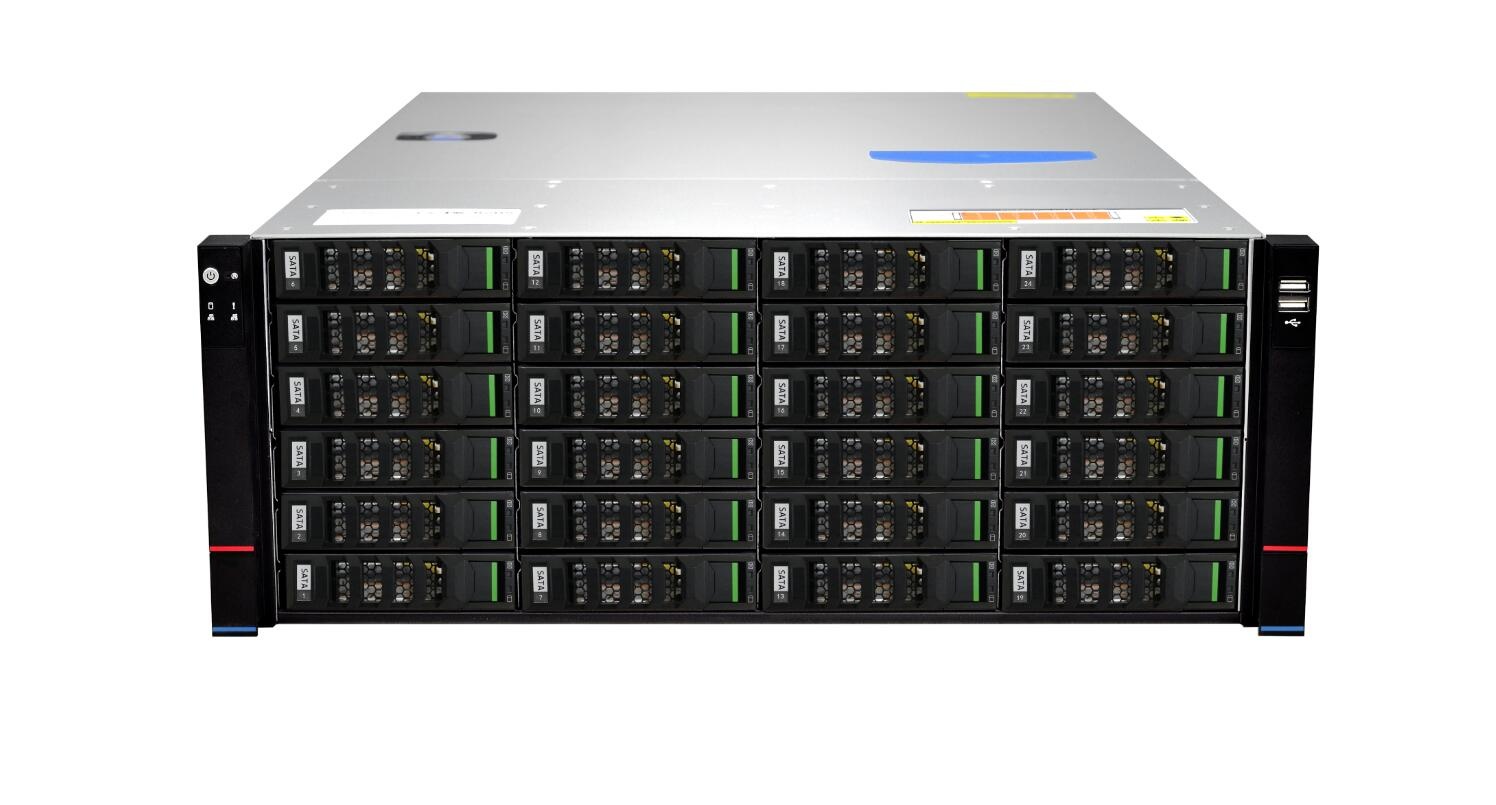

The JINPIN KU4124-FT is a self-developed secure and controllable rack-mounted server based on the domestic Phytium FT-2000+ high-performance processor.
The FT-2000+ chip integrates 64 Phytium independently developed high-performance processor cores FTC662, adopts an on-chip parallel system (PSoC) architecture, integrates efficient processor cores, data-affinitive large-scale coherence storage structure, hierarchical two-dimensional Mesh interconnection network, and optimizes storage access latency.
It provides industry-leading computing performance, memory bandwidth, and IO expansion capabilities, is compatible with the 64-bit ARMV8 instruction set, supports hardware virtualization functions, integrates system-level security mechanisms, and can meet performance requirements and security needs in complex application scenarios. It supports commercial and industrial quality grades.
This product is suitable for industrial fields such as government and enterprise offices, data storage, cloud computing, finance, big data analysis, and rail transit.
Powerful Performance
The KU4124-FT is built based on the latest generation of Phytium FT-2000+ processors. The FT-2000+ chip has 64 fully self-developed FTC662 cores, TDP of 100W, a maximum frequency of 2.3GHz, and a single-core 32MB L2 cache, giving the server high processing performance.
It supports 8 DDR4 DIMM memory slots, and the memory capacity can support up to 512GB.
Flexible Expansion
It supports 24 3.5/2.5-inch hot-swappable hard drives and optional 2 rear 2.5-inch hot-swappable hard drive bays.
It provides 7 standard PCIe 3.0 expansion slots, supports various RAID cards, HBA cards, network cards, and other PCIe expansion card classes, which can further improve I/O performance.
Secure and Controllable
It supports PSPA 1.0 security standards, supports security mechanisms based on domain isolation, and integrates ROM as a trusted boot root.
It supports domestic secure operating systems such as Galaxy Kylin and Tongxin UOS, with strong cross-platform compatibility and high security.
Intelligent Management
Based on the user-friendly design concept, it can realize tool-free maintenance. Through the enhancement and optimization of some structural components, it can achieve quick disassembly and assembly, greatly reducing operation and maintenance time.
It is equipped with a domestic BIOS and BMC, which can monitor hardware system parameters in real-time through the web management interface, issue warning messages in advance, enable technicians to take corresponding measures, and quickly locate the fault range through the indicator lights on the front panel, thereby simplifying maintenance work, accelerating problem-solving speed, and ensuring stable machine operation.|
Component |
Description |
|
Specification |
4U Rack-mounted |
|
Size |
670x444x177mm(Depth x Width x Height) |
|
Processor |
Domestic Phytium FT-2000+ processor 64 cores, 2.0-2.3GHz frequency Power consumption: 100W |
|
Architecture |
ARMV8 Architecture |
|
Memory |
Built-in 8 DDR4 DIMM slots, supports DDR4 ECC RDIMM memory Single memory capacity: 8GB, 16GB, 32GB, 64GB Memory capacity up to 512GB
|
|
Storage |
Front: 24 x 3.5/2.5 inch SATA/SAS hot-swappable hard drive bays Built-in: 1 x M.2 NVMe hard drive bay Optional: 2 x 2.5 inch SATA/SAS hot-swappable hard drive bays at the back |
|
Storage Controller |
RAID card controller, SAS card controller Supports RAID 0, 1, 5, 6, 10 |
|
Network Interface |
4 x RJ45 1000/100/10Mbps adaptive Ethernet interfaces |
|
Management |
Built-in independent 1000Mbps network interface dedicated for IPMI remote management |
|
PCIe Expansion |
Up to 7 PCIe 3.0 standard expansion slots: 2 x PCIe 3.0 x16 slots 1 x PCIe 3.0 x16 slot (x8) 4 x PCIe 3.0 x8 slots |
|
I/O Interfaces |
4 x USB 3.0 (4 at the back, 2 at the front) 1 x VGA interface, 1 x COM interface |
|
Firmware |
Domestic self-developed security firmware: Bai Ao firmware |
|
Cooling |
Standard equipped with 3 x 8038 fans |
|
Power Supply |
Standard equipped with 800W 1+1 redundant power supply |
|
Operating System |
Domestic operating systems such as Galaxy Kylin V10, UnionTech UOS, Inspur, Kylin TrustEase, etc. |
|
Operating Environment |
Temperature: Operating: 0°C40°C; Non-operating: -40°C60°C Humidity: Operating: 10%~90%; Non-operating: 5%~95% (non-condensing) |
