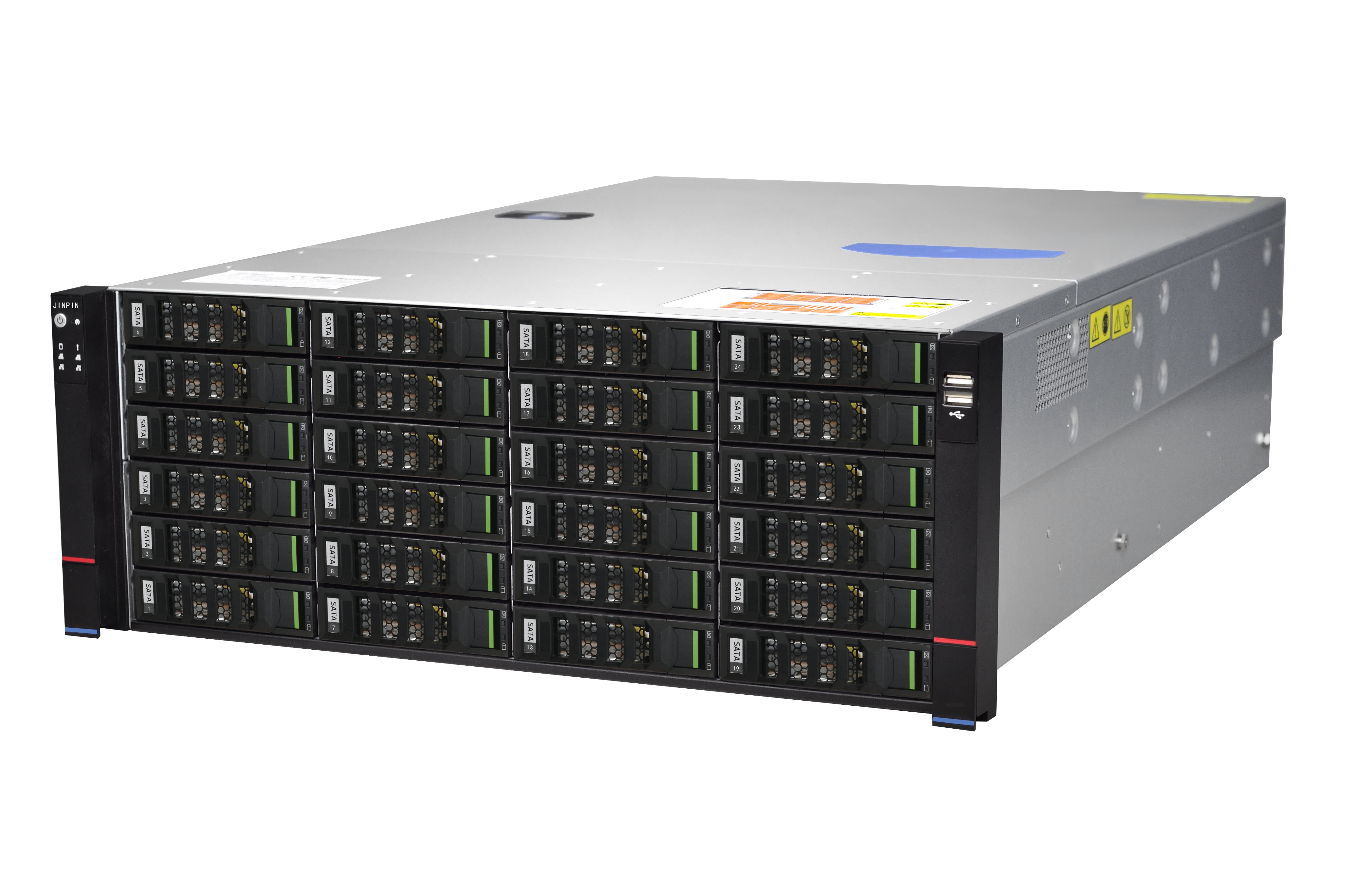

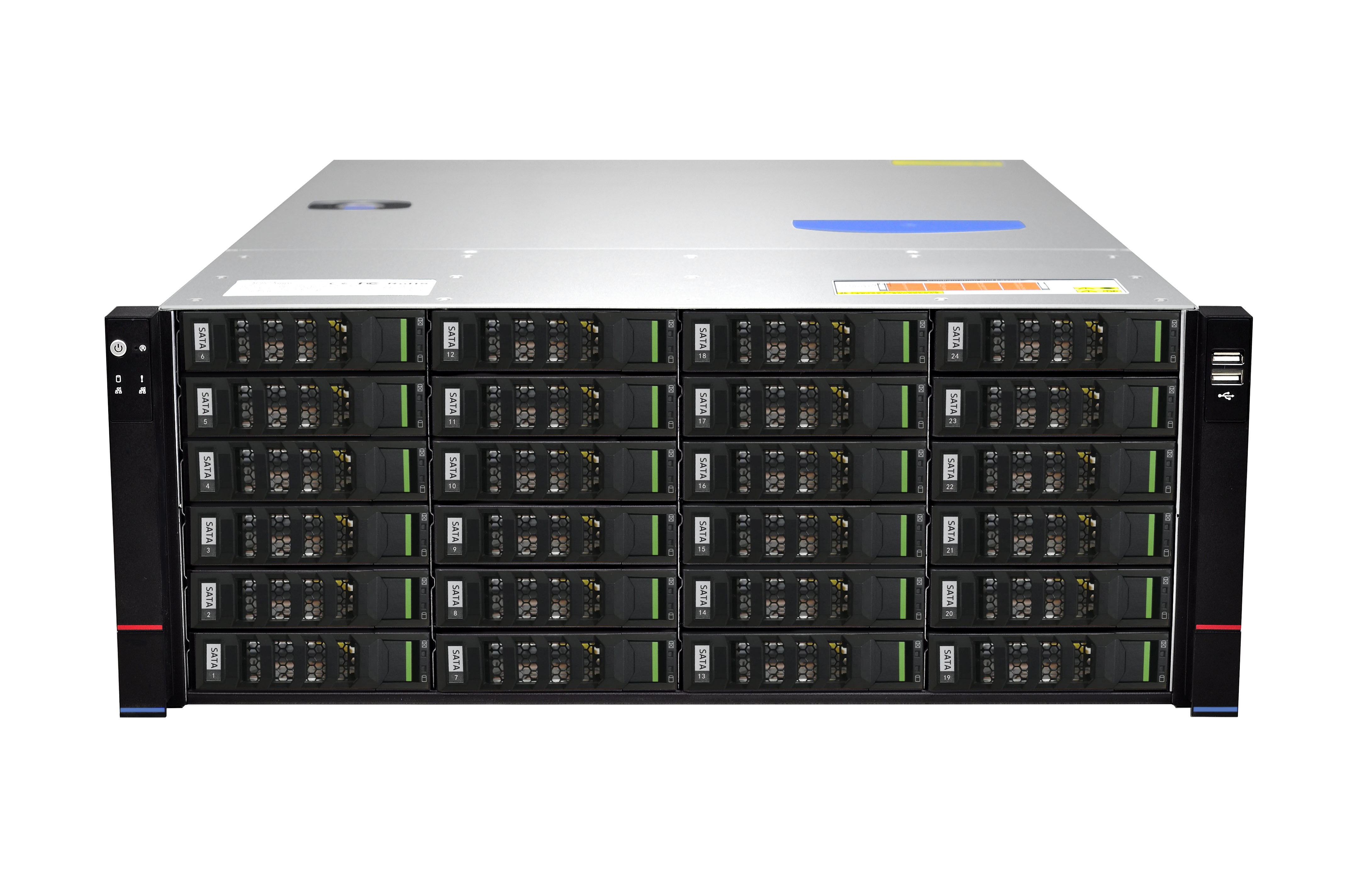

Jinpin KS 4236-V2 4U Storage Server

KS 4236-V2 is a 4U 36-bay storage server launched by Jinpin, which has made a leap in storage performance compared to traditional products.

It is suitable for small-scale critical production business such as small databases like MySQL and SQL, as well as massive unstructured data business scenarios, such as video surveillance data storage, audio and video data storage, archive storage, backup data storage, etc.

It can be flexibly configured according to different application business requirements. With its rich data management functions, it can provide users with various solutions such as IP/FC SAN high-speed access, continuous data protection, and operating system protection.


Features

Massive storage:

    Supports 36 hot-swappable 3.5/2.5-inch SATA/SAS 12Gb/s disks.

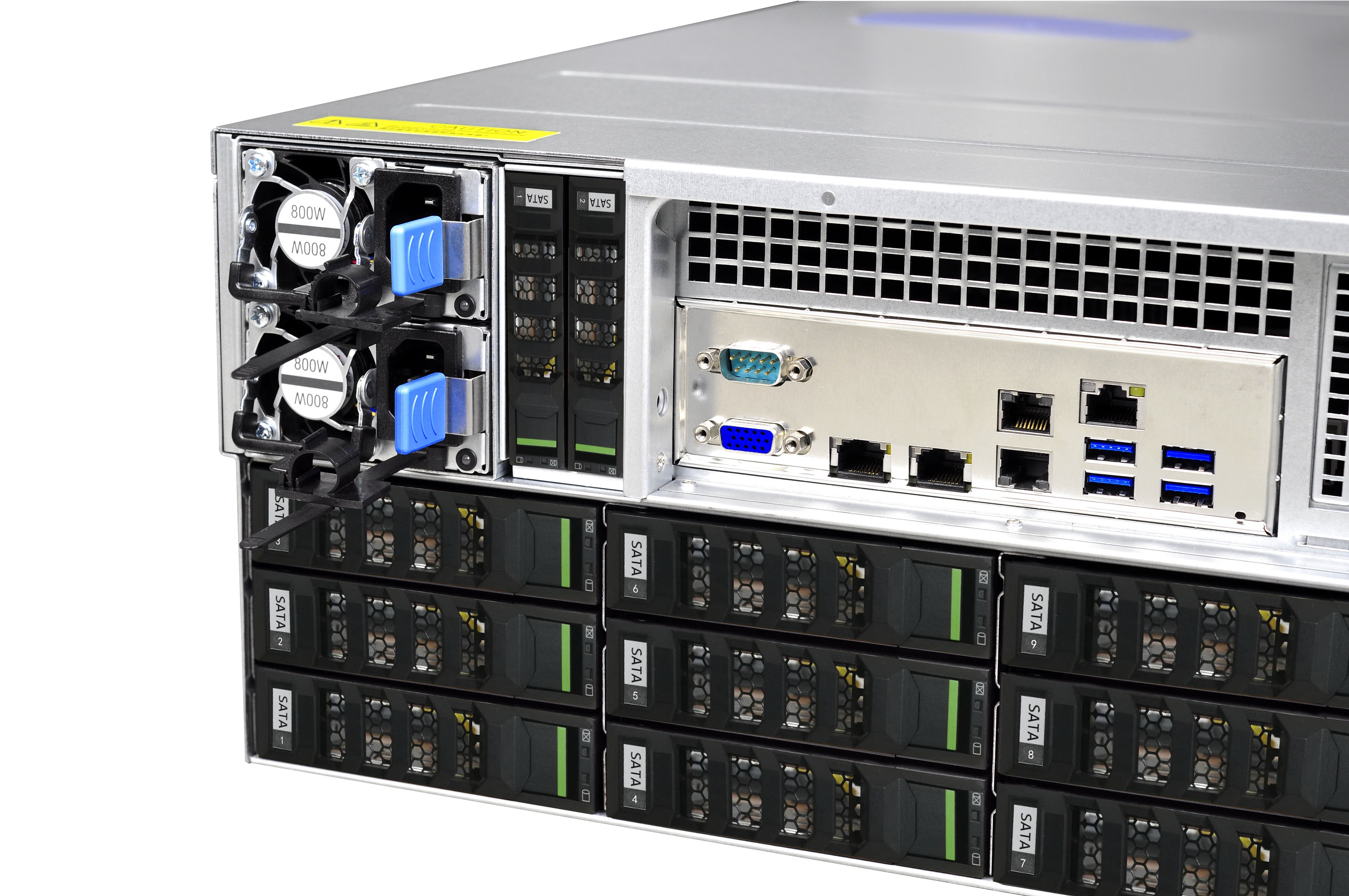

    2 hot-swappable 2.5-inch disks at the rear, supporting RAID/pass-through work mode, without loss of computing performance while providing larger capacity storage space.

Multi-scenario, excellent performance:

    Suitable for scenarios with massive storage space, such as file backup, cloud storage, distributed storage, cluster storage, video surveillance, etc.

    Supports dual Intel® Xeon® Cascade Lake Platinum/Gold/Silver/Bronze series scalable processors and six-channel 2TB DDR4 ECC RDIMM memory.

    The system adopts SAS 12Gbps high-speed backplane to ensure that each disk can perform optimally.

    At the same time, it uses Intel 10GE dual-port Ethernet connection, which can be upgraded to 4-port or 25GE Ethernet connection to improve the overall throughput performance of the system.

Compatibility and flexibility:

    Supports Linux, Windows, MAC operating systems, and cluster computing applications developed based on the above systems, compatible with various application software, and can access storage clusters without any modification, and can realize online replacement of hardware devices.

    The control interface is simple and user-friendly, and the system's running status, workload of each node, space occupancy of storage, performance curve changes, and other content are clear at a glance, making management very convenient.

Components


Specifications

Components

Description

Specification

4U rackmount

Size

177 x 433 x 670mm(H x W x D)

Processor

2 x Intel® Xeon® Skylake/Cascade Lake processors, up to 140W

Chipset

Intel® C621

Memory

Supports 8 x DDR4 ECC RDIMM/LRDIMM memory

Frequency support 1866/2133/2400/2666/2933MHz

Supports up to 2TB memory

Storage

Supports 36 x 3.5"/2.5" SAS/SATA3.0 hot-swappable hard drives

Supports 2 x 2.5" internal hard drives

Optional 2 x hot-swappable 2.5" hard drives at the rear

RAID

RAID 0/1/5/10/50/60/JBOD

Network

2 x Intel® X722 10 Gigabit Ethernet

PCIe expansion

2 x PCI-E 3.0 x16 expansion slots

3 x PCI-E 3.0 x8 expansion slots

Display

AST2500

Management

IPMI 2.0

Other interfaces

4 x USB 2.0, 3 x U

4 x USB 2.03 x USB 3.01 x COM

Power supply

Platinum 1200W 1+1 redundant

Operating system

Microsoft Windows Server

Red Hat Enterprise Linux

SUSE Linux Enterprise ServerCentOSUbuntu

Working environment

Operating temperature: 5°C to 35°C, Operating humidity: 8% to 90%
