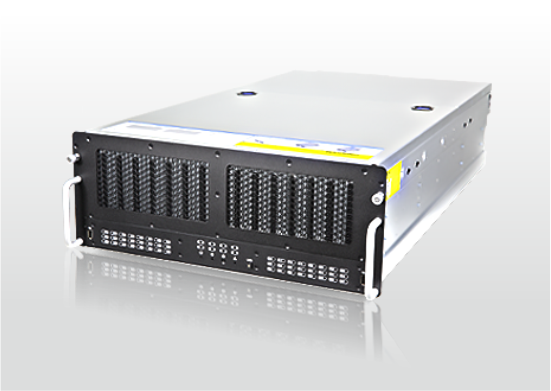

Jinpin KS4248-V2 4U 48-disk Storage Server
KS4248-V2 is a 4U 48-disk storage server launched by Jinpin, which brings a leap in storage performance compared to traditional products.
It is suitable for both small-scale critical production businesses, such as small databases MySQL, SQL, and for massive unstructured data business scenarios, such as video surveillance data storage, audio and video data storage, archive storage, and backup data storage.
It can be flexibly configured according to different application business needs, and with its rich data management functions, it can provide users with IP/FC SAN high-speed access, continuous data protection, operating system protection, and other solutions.
As a professional and advanced data security storage system, the product complies with the PACE specification for enterprise data center planning and design, which can help users achieve the value goal of "making data centers simpler."
Massive storage
It can support 48 3.5" SAS/SATA hard drives, providing large storage space, excellent storage I/O brings a leap in storage performance quality, and provides data tiered storage.
Single node up to 864TB of raw capacity, with excellent structural design, this product is an enterprise-level storage server product with high computing power, massive storage, and stability. The ultra-fast backplane bandwidth supports various types of disk mixing and supports NVMe PCIe SSD acceleration and intelligent tiered storage features. The redundant design of components and RAID protection mechanism escort the user's data security.
Multiple scenarios, high throughput
Scenarios with massive storage space such as file backup, cloud storage, distributed storage, cluster storage, video surveillance, etc.
It supports dual Intel® Xeon® Cascade Lake Platinum/Gold/Silver/Bronze scalable processors, six-channel 2TB DDR4 ECC RDIMM memory, and supports RAID/pass-through working mode.
It does not sacrifice computing performance while providing a larger capacity storage space.
Compatibility and flexibility
It supports Linux, Windows, MAC operating systems, and cluster computing applications developed based on the above systems, compatible with various other application software, and can access storage clusters without any changes, and can achieve online replacement of hardware devices.
The control interface is simple and user-friendly, and the system's running status, workload of each node, storage space occupancy, performance curve changes, and other contents are all clear at a glance, and the management is very convenient.
|
Component |
Description |
|
Form Factor |
4U rackmount |
|
Size |
175.8 x 448 x 832.8 mm(D x W x H) |
|
Processor |
2nd Generation Intel® Xeon® Scalable Processors CPU (Cascade Lake-SP) |
|
Chipset |
Intel® C621 |
|
Memory: |
Supports 16 x DDR4 ECC RDIMM/LRDIMM memory Frequency support 1866/2133/2400/2666/2933MHz Supports up to 4TB of memory |
|
Storage |
Supports 48 x 3.5″/2.5″ SAS/SATA3.0 hot-swappable hard drives 2 x 2.5″ hot-swappable hard drives in the rear |
|
RAID |
RAID 0/1/5/10/50/60/JBOD |
|
Network |
2 x Intel® X722 Gigabit Ethernet |
|
PCIE Expansion |
4 x PCI-E 3.0 x16 expansion slots 2 x PCI-E 3.0 x8 expansion slots |
|
Display |
AST2500 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、2 x USB 2.0、2 x USB 3.0、1 x COM |
|
Power Supply |
Platinum Level 1100W 1+1 Redundant Power Supply |
|
Operating System |
Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server、CentOS、Ubuntu |
|
Operating Environment |
Operating temperature: 5℃-35℃; Operating humidity: 8%-90% |
