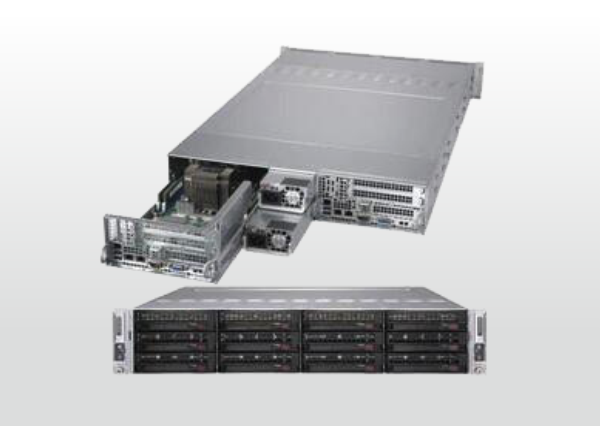

Jinpin KN 2212-G2 Dual-node Server
The product is a 2U space design with two independent servers, featuring high density, high performance, and easy management.
● CPU: Intel® Xeon® Silver 4210 10-core 2.2GHz
● Memory: 32GB DDR4 ECC RDIMM
● Hard Drive: 480G data center-grade SSD
● Network: Intel® dual gigabit network
● Power Supply: 1200W (1+1) redundant power supply
High Performance:
Each node supports 2 Intel® Xeon® Cascade-Lake Platinum/Gold/Silver/Bronze series scalable processors, six-channel 2TB DDR4 ECC RDIMM memory, providing users with up to 50% performance improvement to meet various application scenarios.
The system adopts a unique design of multi-node shared power supply and shared heat dissipation, improving hardware resource utilization. The efficient 1+1 redundant power supply design is more energy-saving compared to other solutions, reducing data center PUE.
Easy Maintenance and Management:
(Node, hard drive, power supply) are hot-swappable, reducing maintenance difficulty. With the BMC management module providing SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and OS deployment management functions, convenient system management is achieved, reducing operational costs.
Application Scenarios:
Cloud computing, hyper-convergence, HPC, and other compute-intensive application scenarios.
|
Form Factor |
2U Rackmount; 88mm x 438mm x 724mm (H x W x D) |
|
Processor |
Intel® Xeon® Platinum/Gold/Silver/Bronze Scalable Processor (TDP 140W) |
|
Chipset |
Intel® C621 |
|
UPI |
10.4 GT/s |
|
Memory |
8 DIMM slots, supports up to 2TB DDR4 3DS ECC RDIMM 2400/2666/2933 memory |
|
Storage |
12 x 3.5-inch SATA hot-swappable HDDs |
|
RAID |
RAID 0, 1,10,5 |
|
Network |
Dual Intel® C621 Gigabit Ethernet |
|
PCIe Expansion |
2 PCIe 3.0 x8 |
|
Display |
Aspeed AST2500 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、 2×USB 3.0、IPMI、COM |
|
Power Supply |
1200W 1+1 Platinum-level power supply |
|
Operating System |
Windows 8.1/10/2012R2/2016/2019 Centos/Redhat 6.9/7.3/7.4; Suse SLES 11sp4/12sp2 Ubuntu 16.04/17.04; Vmware ESXI 6.5; Xen Server 7.2 |
|
Operating Temperature |
10℃～35℃ |
|
Operating Humidity |
8%-90％relative humidity |
