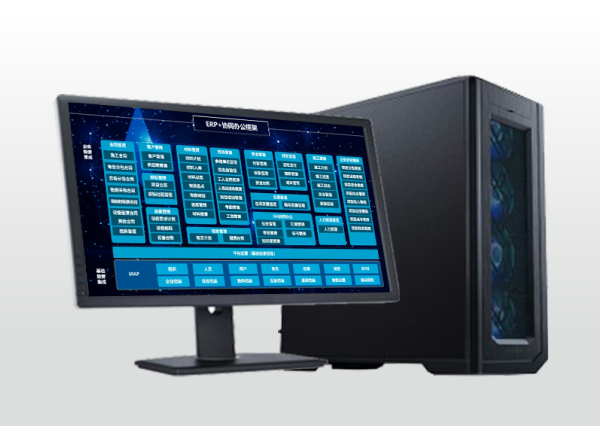

Jinpin KD 7100-X2 Graphic Workstation
The KD7100-X2 is a tower-style high-performance consumer-grade GPU workstation powered by 12th Gen Intel Core series processors. It supports one dual-width GPU card and provides powerful professional computing capabilities. It has 4 DDR4 memory slots with a capacity of up to 128GB.
It is mainly targeted towards growing small and medium-sized enterprises as well as large enterprise branches. It provides reliable hardware foundation for overall solutions such as remote office environment, email, printing services, and video surveillance. It also has excellent silent noise reduction design, making it more suitable for office environments. It is the preferred entry-level server for small and medium-sized information technology construction.
Powerful Performance
The KD7100-X2 is built on the 12th Gen Intel Core series processors, which has 16 cores and 24 threads, and supports up to TDP 241W CPU.
Intel Turbo Boost Max Technology 3.0 can identify the fastest core of the processor and allocate the most critical workload to it, increasing single-threaded performance by more than 15%.
It supports 4 3200 MHz DDR4 memory slots, providing excellent speed, high availability, and up to 128GB of memory capacity.
Flexible Expansion
It supports 4 3.5/2.5 inch SATA/SAS non-hot-swappable hard drives and one M.2 hard drive.
It supports 4 standard PCIe 3.0 expansion slots, which can be used to further improve I/O performance. It supports PCIe expansion cards such as graphics cards and network cards.
It also supports HDMI and DP display output, perfectly adapting to various high-speed peripherals.
Application Scenarios
It can be flexibly configured according to the actual application characteristics of customers to meet their changing application needs.
It can be used for graphic design software such as Autodesk Maya, 3ds Max, CAD, Solidworks, and C4D.
|
Component |
Description |
|
Specification |
Tower |
|
Processor |
Supports Intel Core 12th/13th Gen series processors Supports 16 cores Supports up to 5.2 GHz frequency |
|
Chipset |
Intel Z690 |
|
Memory |
Supports 4 DDR4 3200 MHz memory slots Supports ECC DDR4 Non-ECC, Un-buffered Supports up to 32GB per memory slot |
|
Graphics Card |
Equipped with professional-grade graphics card |
|
Storage |
Supports 4 non-hot-swappable 3.5/2.5 inch hard drives Supports 3 M.2 hard drives |
|
Network |
2.5Gbps network interface |
|
I/O Expansion Slots |
1 PCIe 5.0 x16 expansion slot 1 PCIe 4.0 x16 expansion slot 2 PCIe 3.0 x16 expansion slots 1 PCIe 3.0 x1 expansion slot |
|
Display Interface |
1 x HDMI、1 x DP |
|
Other Interfaces |
3 x USB 3.0, 4 x USB 2.0, 1 x audio interface, 1 x Type-C, 1 x SP2 |
|
Optical Drive |
DVD-RW |
|
Fans |
3 x front fans, 1 x rear fan, 3 x top fans, 1 x bottom fan |
|
Power Supply |
850W/1000W tower power supply |
|
Operating System |
Windows 10/11 |
|
Weight |
Approximately 10KG |
|
Operating Temperature |
10℃‒ 35℃ |
