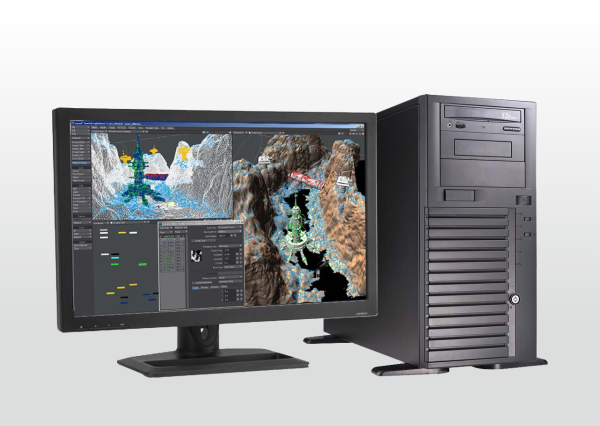

Jinpin KD 7104 GPU Workstation
The Jinpin KD 7104 is a tower workstation based on the high-performance Intel W-series processor. It is mainly targeted at growing small and medium-sized enterprises and is suitable for monitoring and maintaining enterprise data and network resources, supporting email, file, and desktop virtualization applications. It uses a new platform architecture, which can be flexibly configured according to actual application needs to meet the constantly evolving business application requirements and provide enterprise-level performance and stability.
Powerful performance:
The KD7104 is built on the Intel Xeon W-2200 series processor with 18 cores and 36 threads, supporting TDP 165W. It supports 8 2666 MHz DDR4 memory slots, with LRDIMM support, providing excellent speed and up to 1TB of memory capacity.
Flexible expansion:
It supports 4 non-hot-swappable 3.5/2.5 inch SATA/SAS hard drives, and 4 standard PCIe 3.0 expansion slots, which can be used to further improve I/O performance. It also supports PCIe expansion cards such as graphics cards and network cards. It supports HDMI and DP display output, perfectly compatible with various high-speed peripherals.
Application scenarios:
It can be flexibly configured according to the actual application needs of customers, meeting their constantly changing application requirements. It has excellent quiet and noise reduction design, which is more suitable for office environments. It can be used for graphic design software such as Autodesk Maya, 3ds Max, CAD, Solidworks, and C4D.
|
Component |
Description |
|
Specification |
Tower |
|
Processor |
Supports 1 Intel Xeon W-3200 series processor 18 cores 4.8 GHz frequency 165W TDP |
|
Chipset |
Intel C422 |
|
Memory |
Supports 8 DDR4 2666/2400 MHz memory slots Supports ECC DDR4 LRDIMM, RDIMM SDRAM Single memory module supports up to 1TB |
|
GPU |
1 dual-width GPU card support |
|
Storage |
Built-in: Supports 4 non-hot-swappable 3.5/2.5-inch hard drives |
|
Network |
Integrated dual RJ45 network interfaces on the motherboard |
|
I/O Expansion Slots |
3 x PCIe 3.0 x16, including 2 PCIe slots in x16 form 1 x PCIe 3.0 x4 |
|
Interfaces |
Front: 2 x USB2.0 Rear: 1 x PS2 KB/Mouse, 2 x USB2.0, 1 x VGA, 4 x USB3.1, 2 x RJ45 network interfaces, 2 x USB3.1, a set of audio interfaces |
|
Optical Drive |
Supports SATA interface DVD-RW |
|
Fans |
1 front fan, 1 rear fan |
|
Power Supply |
850W/1000W tower power supply |
|
Operating System |
Windows 10/Server2012R2 /Server2016/Server2019；RedHat 7.3/7.4/8.2 Ubuntu 16.04.3/17.04/18.04.2/18.04.3/20.04；Vmware ESXi 6.7u2 SuSE Leap 42.3；Fedora 25/26； |
|
Dimensions |
D 465mm；W 198mm；H 425mm |
|
Weight |
Approximately 25KG |
|
Operating Temperature |
0℃– 50℃ (32°F - 122°F) |
