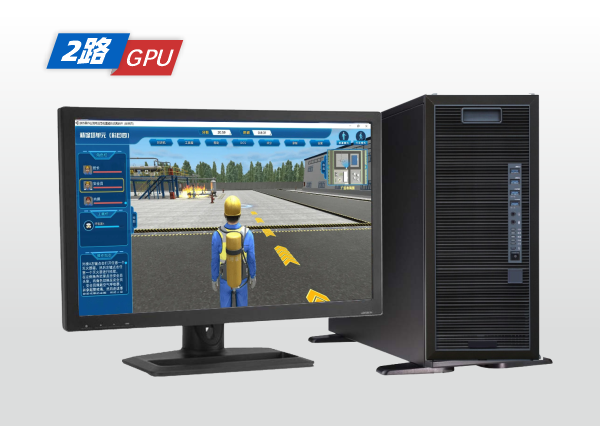

Jinpin KD 7202-V2 Graphics Workstation

The KD 7202-V2 is a high-performance dual-processor tower GPU workstation featuring the second generation of Intel Xeon scalable processors, which can support two double-wide GPU cards and provide powerful professional-level computing capabilities. With 16 DDR4 memory slots and up to 4TB of memory capacity, it significantly improves memory bandwidth, providing leading performance that can meet the demanding requirements of various computing applications.

This workstation can be applied in various fields, including multimedia, autonomous driving, life sciences, industrial manufacturing, simulation and modeling, molecular dynamics research, remote education, and enterprise IT services.

Features

Powerful Performance

The KD7202-V2 is built on the second generation of Intel Xeon scalable processors with 28 cores and 56 threads, supporting a TDP of 205W. It supports 16 2933 MHz DDR4 memory slots, providing excellent speed, high availability, and up to 4TB of memory capacity.



Flexible Expansion

It supports two 3.5/2.5-inch and four 2.5-inch non-hot-swappable hard drives and one M.2 hard drive. It supports six standard PCIe 3.0 expansions for further I/O performance enhancement and PCIe expansion cards such as graphics cards and network cards. It also supports HDMI and DP display output, perfectly adapting to various high-speed peripherals.



Intelligent Management

It provides a management network port for remote server management and monitoring, including remote power on/off and system installation, making it particularly suitable for large enterprise distributed server deployments.

Specifications

Components

Description

Specification

Tower

Processor

Supports 2 Intel Xeon 2nd generation scalable processors

Supports 28 cores

Supports up to 4.0GHz frequency

205W power consumption

Architecture

Intel C621

Memory

Supports 16 DDR4 2933 MHz memory slots

Supports LRDIMM, RDIMM

Each memory slot supports up to 128GB

GPU

Equipped with 2 GPU cards

Storage

Internal: Supports 2 non-hot-swappable 3.5/2.5-inch hard drives, 4 non-hot-swappable 2.5-inch hard drives, and 1 M.2 hard drive

Network

The motherboard has 2 integrated Gigabit network interfaces

I/O Expansion Slots

4 × PCIe 3.0×16

2 × PCIe 3.0 x8

Interfaces

Front: 2 x USB 3.0, 1 set of audio interfaces

Rear: 4 x USB 3.0, 1 x USB 3.1 Type-C, 1 x USB 3.1, 2 x Gigabit network interfaces, 1 set of audio interfaces, 1 x VGA

Optical Drive

Not supported

Fans

2 front fans, 1 rear fan

Power Supply

850W/1500W tower power supply

Operating System

Windows 8.1102016Server2019ServerRedHat 6.97.37.4

Fedora 2425SuSE SLES 11SP412SP2Ubuntu 17.0419.0420.04LTS

Solaris 11.3Oracle Linux7.3FreeBSD 10.311Centos 7.3

VMware ESXi 6.57.0u1XenServer 7.1

Dimensions

D (depth) 489.7mm; W (width) 215mm; H (height) 460.5mm

Weight

Approximately 20KG

Operating Temperature

0℃– 35℃ (50°F - 95°F)
