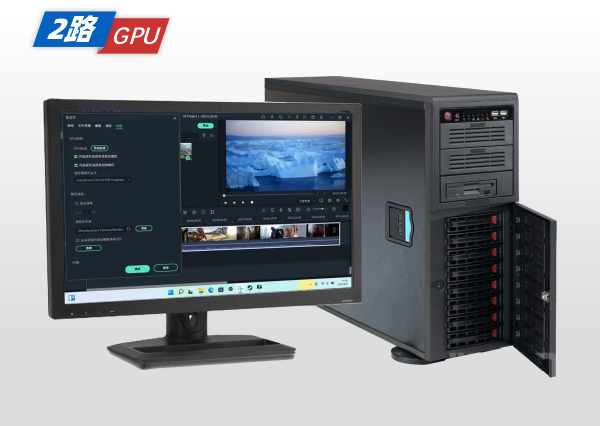

Jinpin KD 7208-V3 Graphics Workstation
The KD 7208-V3 is a high-performance dual-processor tower GPU workstation featuring the third generation of Intel Xeon scalable processors. It can support two double-wide GPU cards and provide powerful professional-level computing capabilities. With 16 DDR4 memory slots and up to 4TB of memory capacity, it significantly improves memory bandwidth, providing leading performance that can meet the demanding requirements of various computing applications.
This workstation can be applied in various fields, including finance, video monitoring, intelligent teaching, codec technology, intelligent healthcare, network communication, and image rendering.
Powerful Performance
The KD7208-V3 is built on the third generation of Intel Xeon scalable processors with 40 cores and 80 threads, supporting a TDP of 270W. It supports 16 3200 MHz DDR4 memory slots, providing excellent speed, high availability, and up to 4TB of memory capacity.
Flexible Expansion
It supports 8 hot-swappable 3.5/2.5-inch hard drives, 4 non-hot-swappable 2.5-inch hard drives, and 2 M.2 hard drives. It supports six standard PCIe 3.0 expansions for further I/O performance enhancement and PCIe expansion cards such as graphics cards and network cards. It also supports HDMI and DP display output, perfectly adapting to various high-speed peripherals.
Intelligent Management
It provides a management network port for remote server management and monitoring, including remote power on/off and system installation, making it particularly suitable for large enterprise distributed server deployments.
|
Components |
Description |
|
Specification |
Tower; 452 x 178 x 647mm (H x W x D) |
|
Processor |
2 Intel Xeon Ice Lake series processors, up to 270W |
|
Chipset |
Intel C621A |
|
Memory |
Supports 16 DDR4 3200 MHz memory slots Supports ECC DDR4 LRDIMM (3DS), RDIMM (3DS) Supports up to 4TB of memory |
|
Graphics Card |
Equipped with 2 professional-level graphics cards |
|
Storage |
Supports 8 hot-swappable 3.5/2.5-inch hard drives |
|
Network |
Dual Gigabit network |
|
I/O Expansion Slots |
1 PCIe 4.0 x 8 expansion slot 5 PCIe 4.0 x 16 expansion slots |
|
Display Interface |
1 x HDMI、1 x DP |
|
Other Interfaces |
6 x USB3.0、1 x 音频接口 |
|
Optical Drive |
DVD-RW |
|
Fans |
4 front fans, 2 rear fans |
|
Power Supply |
1200W high-efficiency power supply |
|
Operating System |
Windows 、Linux |
|
Weight |
Approximately 25KG |
|
Operating Temperature |
10℃– 35℃ |
